SW-06
Swiss Type CNC Lathe
The SW-06 is a lightweight Swiss-type CNC lathe specially designed for machining small and precise parts. It features 3-axis turning and milling capabilities, and comes equipped with a 5-position quick-change end face tool holder — a smart solution to the common limitation of having too few end face tools. With its compact design and affordable price, it’s the perfect choice for manufacturing in the electronics and watchmaking industries.

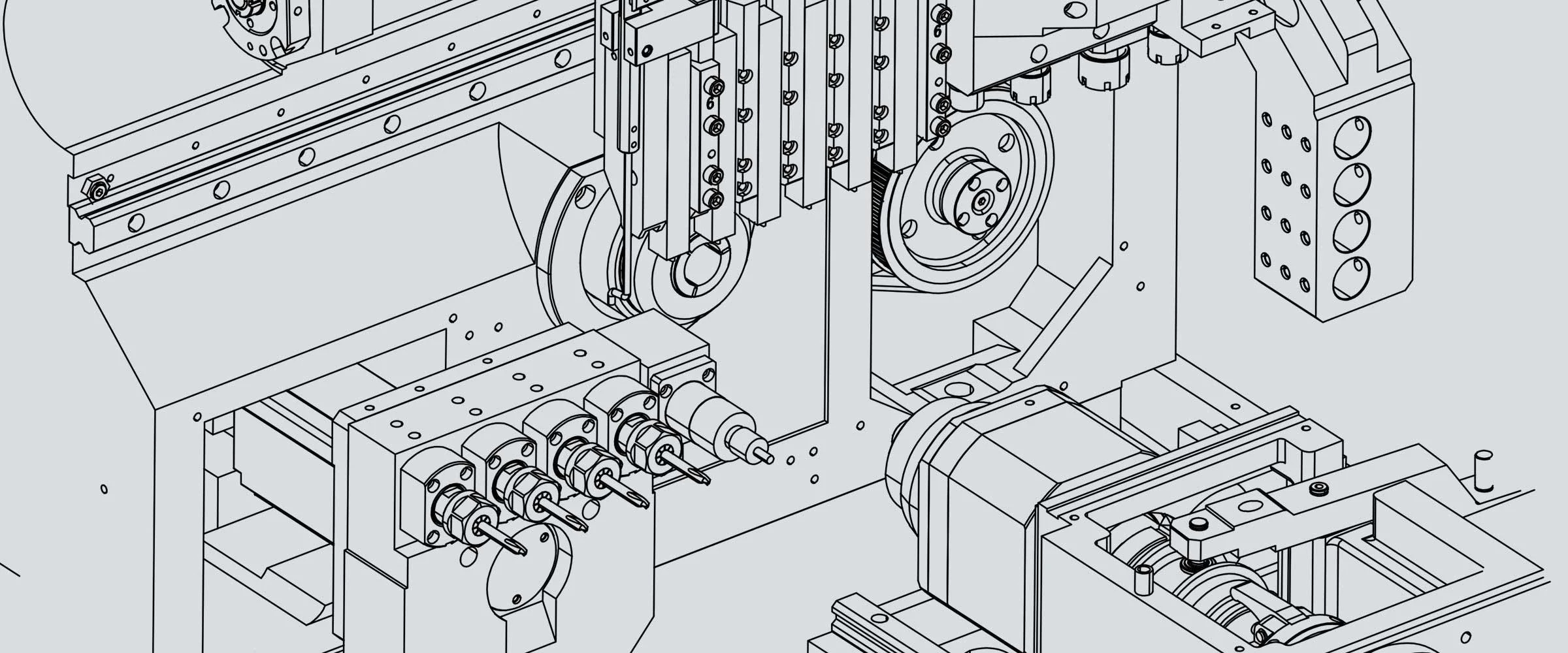

STANDARD CONFIGURATION
10
Core Features for High-precision CNC Turning.
Servo Spindle
Double Live Tools
Fixed Guide Bush
Quick-change
End Face Tool
SMARTBRAIN
CNC SYSTEM
Working Lamp
Toolbox
User Manual
Lubrication System
Coolant Tank
Installation Dimensions
Details
Technical Specifications |
SW-06 |
|---|---|
Spindle Bore |
Φ6mm(0.236") |
Max. Machining Length |
150mm(5.9") |
Spindle Speed |
8000RPM |
Max. Axial Drilling Diameter |
4mm |
Max. Live Tools Diameter |
4mm |
Max. Live Tools Speed |
5800RPM / Opt. 12000RPM |
Travel |
|
X Axis |
12mm(0.472") |
Z Axis |
300(11.81") |
Y Axis |
60mm(2.36") |
Rapid Speed (X/Z/Y) |
60m/min |
Motor Power |
|
Main Spindle Motor |
0.75KW |
Live Tools Motor |
0.15KW |
Coolant Pump |
0.12KW |
Tools |
|
Tools Capacity |
11 sets |
Turning Tools Size |
5×□8×8mm |
Drilling Tool Holder |
4×ER11 |
Live Tools |
2×ER11 |
Clamp |
|
Spindle Chuck |
P4 |
Guide Bush |
CK1107 |
Dimensions |
|
Footprint |
1000×700×1750mm |
Weight |
680kg |
Power Supply & Air Source |
|
Total Power |
3.75KW |
Voltage |
AC 380V 50Hz 3 Phase |
Air Pressure |
0.4-0.6Mpa |
CNC System Specifications |
||
|---|---|---|
Standard |
Smartbrain Control System |
|
Multi Language (EN, RU, DE, ES, PT etc.) |
||
MPG |
||
USB Port |
||
ISO A Code Programming |
||
Rigid Tapping |
||
Tool Radius Compensation |
||
Constant Surface Speed |
||
Thread Cutting (singel/Multi-pass) |
||
Manual Jog Feed |
||
Runtime Display |
||
Part Counter |
||
Application
Competent to handle the turning process with brass, copper, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to Φ6 mm. Suitable for machining various electronic probes and small parts for valve bodies.
