Slant Bed CNC Lathe

Smartlathe-SL-X-details-items-turning-and-milling

SL-X

The SL-X is a CNC turning and milling machine that provides various possibilities of tooling combinations with a more powerful spindle (7.4 HP). It is the best solution to satisfy the diverse demand for metalworking and the goal to minimize the tool change time.

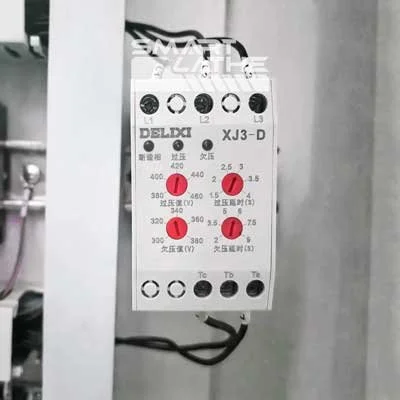

Smartlathe-SL-X-details-Hydraulic-station

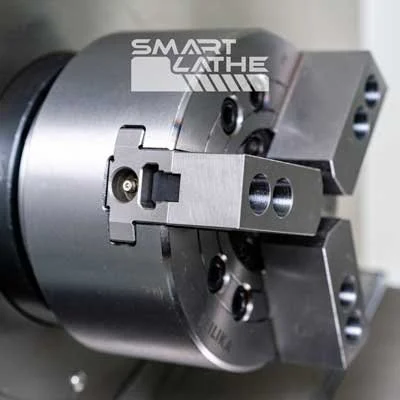

Smartlathe-SL-X-details-3-jaw-hydraulic-chuck

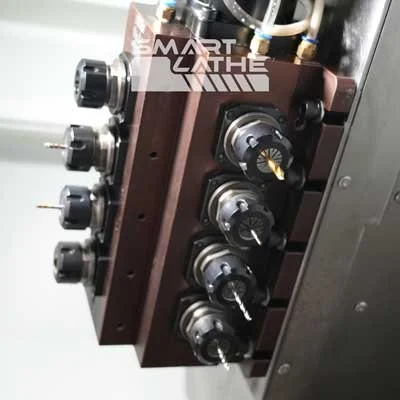

Smartlathe-SL-X-details-4-and-4-live-tools

Technical Specifications	SL-X YM	SL-X SM	SL-X
System	8TA	8TA	8TA
Rated Power	13.5kw	11kw	9kw
Spindle Max Swing Dia.	Φ430mm(16.93 in)	Φ430mm(16.93 in)	Φ430mm(16.93 in)
Max. Turning Length	140mm(5.51 in)	140mm(5.51 in)	140mm(5.51 in)
Max. Turning Dia. (L<50mm/1.97 in)	Φ200mm(7.87 in)	Φ200mm(7.87 in)	Φ200mm(7.87 in)
Spindle Center to Slat Table	Φ50mm(1.97 in)	Φ50mm(1.97 in)	Φ50mm(1.97 in)
Spindle Bore	Φ55mm(2.17 in)	Φ55mm(2.17 in)	Φ55mm(2.17 in)
Max. Bar Material Dia.	Φ45mm(1.77 in)	Φ45mm(1.77 in)	Φ45mm(1.77 in)
Spindle Nose	A2-5	A2-5	A2-5
Spindle Motor Power	7.5kw	5.5kw	5.5kw
Spindle Max. Speed	3500rpm	3500rpm	3500rpm

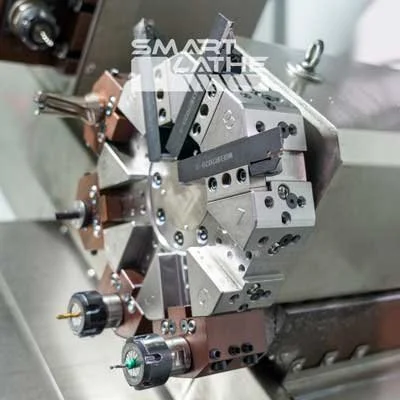

Servo Turret	Standard	/	/
Single-hole Drill Tool Holder	Φ25(3pcs)	Φ20(2pcs)	Φ20(2pcs)
Single-station turning Tool Holder	20*20	16*16	16*16
Double-station turning Tool Holder	/	16*16	16*16
X Axis Servo Motor Power	1.3kw	1.3kw	1.3kw
Z Axis Servo Motor Power	1.3kw	1.3kw	1.3kw
Y Axis Servo Motor Power	1.8kw	/	/
X Axis Travel	1000mm(39.37 in)	1000mm(39.37 in)	1000mm(39.37 in)
Z Axis Travel	300mm(11.81 in)	300mm(11.81 in)	300mm(11.81 in)
Y Axis Travel	220mm(8.66 in)	/	/
X/Z Axis Rapid Feed Speed	20m/min	20m/min	20m/min
Y Axis Rapid Feed Speed	15m/min	/	/
Positioning Accuracy	±0.01	±0.01	±0.01
Repeat Positioning Accuracy	±0.01	±0.01	±0.01
Spindle Rotate Runout Tolerance	±0.01	±0.01	±0.01
Live Tool	4ER25-Radial 4ER25-Axial	2*ER25-Radial	/
Live Tools Power	2.6kw	2.6kw	/
Live Tools Max. Speed	3000rpm	3000rpm	/
Live Tools Max. Drilling Dia.	Φ10mm	Φ10mm	/
Live Tools Max. Tap Dia.	M8	M8	/
Max Tool Install Capacity	16	7	5
Weight	3T	2.5T	2.5T
Dimensions(LxWxH)	213016001970mm 83.8662.9977.56 in	213016001700mm 83.8662.9966.93 in	213016001700mm 83.8662.9966.93 in

CONFIGURATION	SL-X YM	SL-X SM	SL-X
Standard	8TA/22TB	8TA	8TA
	X/Y/Z Servo Drive and Motor	X/Z Servo Drive and Motor	X/Z Servo Drive and Motor
	Taiwan Linear Guideway, Ball Screw
	Hydraulic Station
	Spindle Braking Device
	Rotary Hydraulic Cylinder

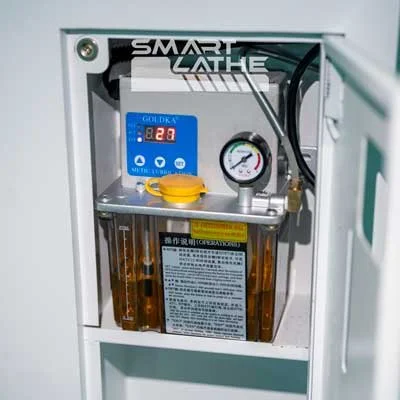

	Lubricating System
	3-color Tower Light
	LED Working Light
	Cutting Fluid Tank
	Toolbox
Optional	Transformer
	Chip Conveyor
	Oil Mist Collector
	3-Jaw Chuck
	Oil-bath Bar Feeder/Auto Bar Feeder
	Truss Manipulator/Articulated Robot
	Parts Catcher + Workpiece Belt Conveyor
	GSK/SYNTEC CNC SYSTEM

Application

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to Φ46 mm or single workpieces up to Φ50mm.

Case Study

SL-X with Y-axis radial 4 living tools, gang type turning tools.
Φ36mm Aluminum

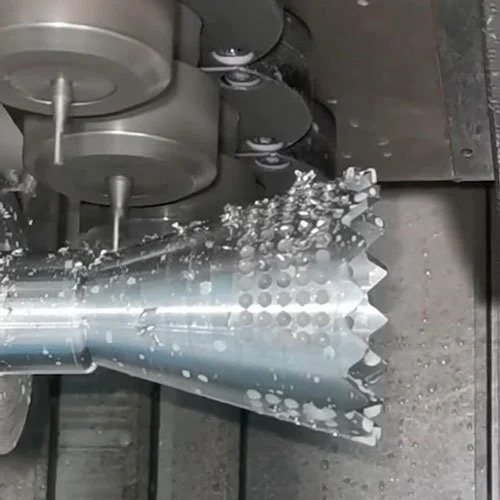

SL-X with Y-axis 4+4 living tools, 8 tools servo turret.
Φ50mm Steel
SL-X with 12 sets gang type turning tools and bar puller.
Φ20mm Brass
SL-X with Y-axis 4+4 living tools, gang type turning tools.
Φ46mm Aluminum
SL-X with Y-axis 4+4 living tools, robotic arm loading and unloading.
Φ25mm Steel

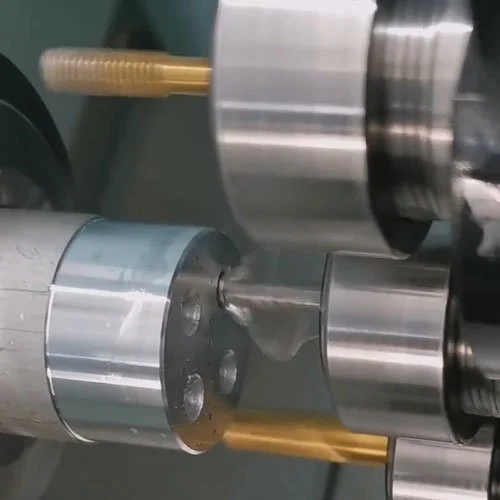

SL-X with 8 tools servo turret, gang type turning tools.
32mm Hexagon Brass

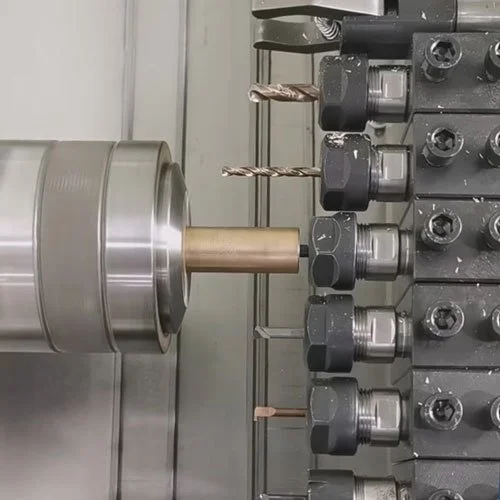

SL-X with Y-axis radial 4 living tools, gang type turning tools.
Φ42mm Aluminum

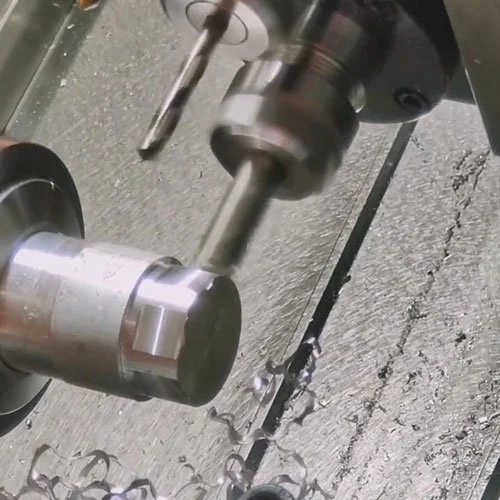

SL-X with Y-axis 4+4 living tools, gang type turning tools.
Φ46mm Aluminum
