SW-105

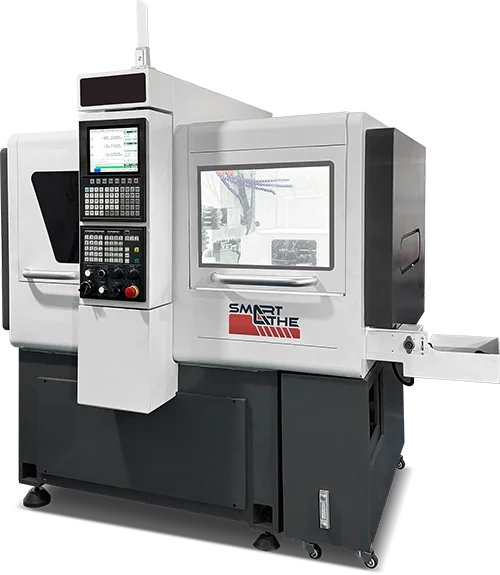

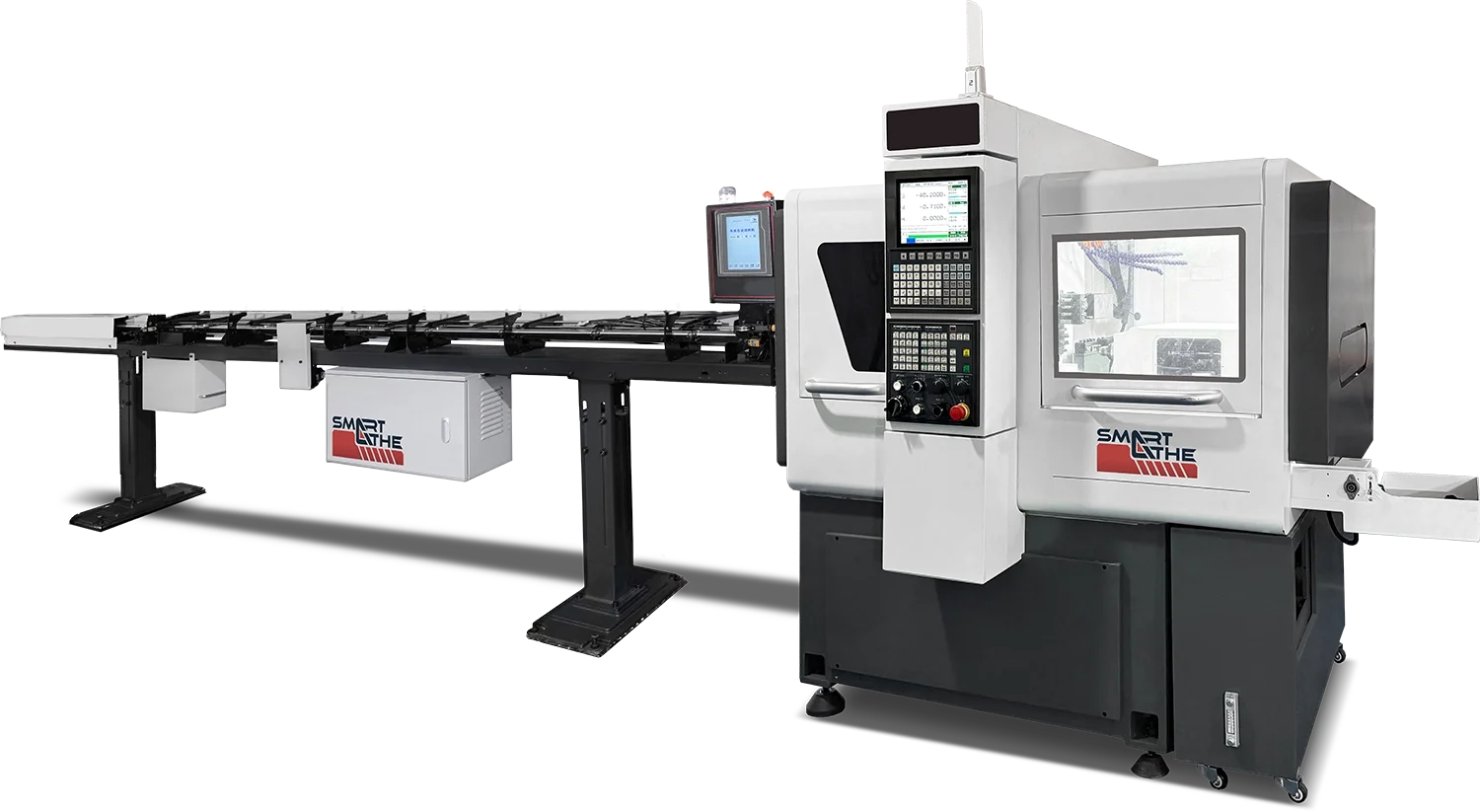

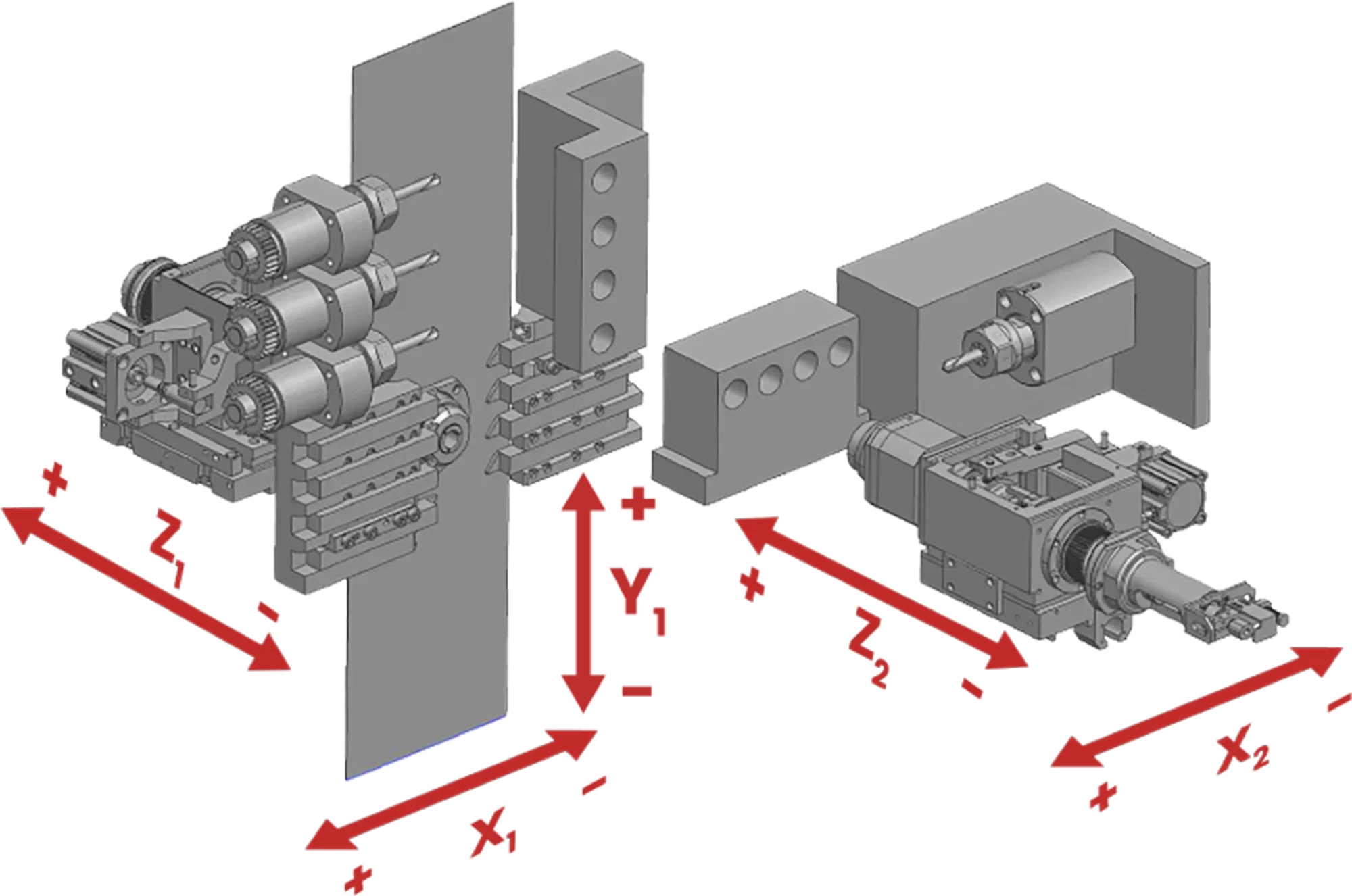

Swiss Type CNC Lathe
The SW-105 Swiss-type lathe uses a sliding headstock and a guide bushing to support the workpiece, allowing for precise and accurate machining of small and intricate parts. The machine is known for its ability to perform multiple operations on a single workpiece, including turning, drilling, milling, and tapping, in a single setup, which reduces the need for additional machines and handling.
STANDARD CONFIGURATION
13
Core Features for High-precision CNC Turning.

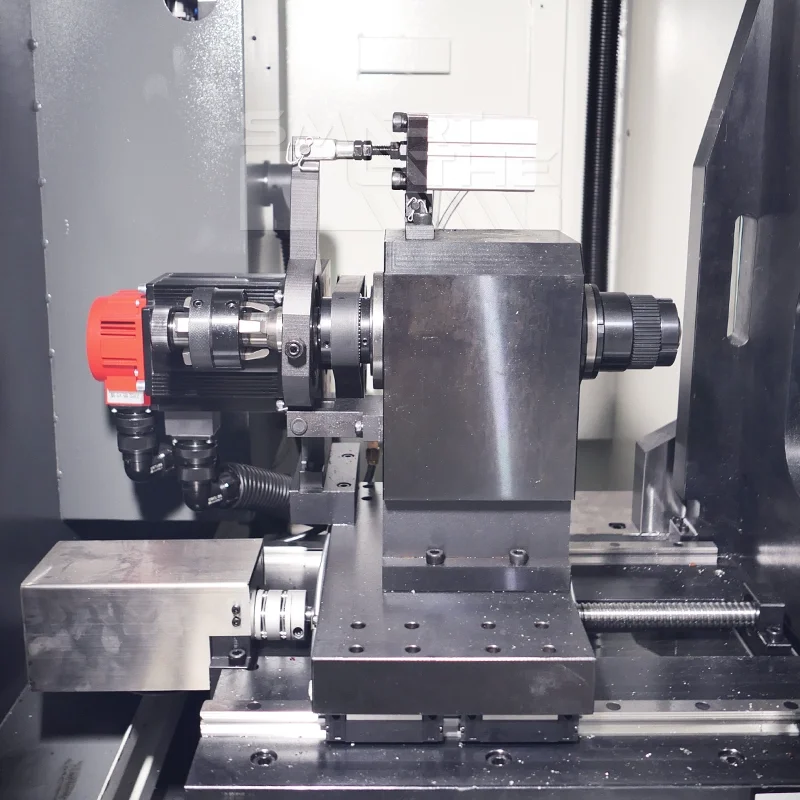

Pneumatic Clamp

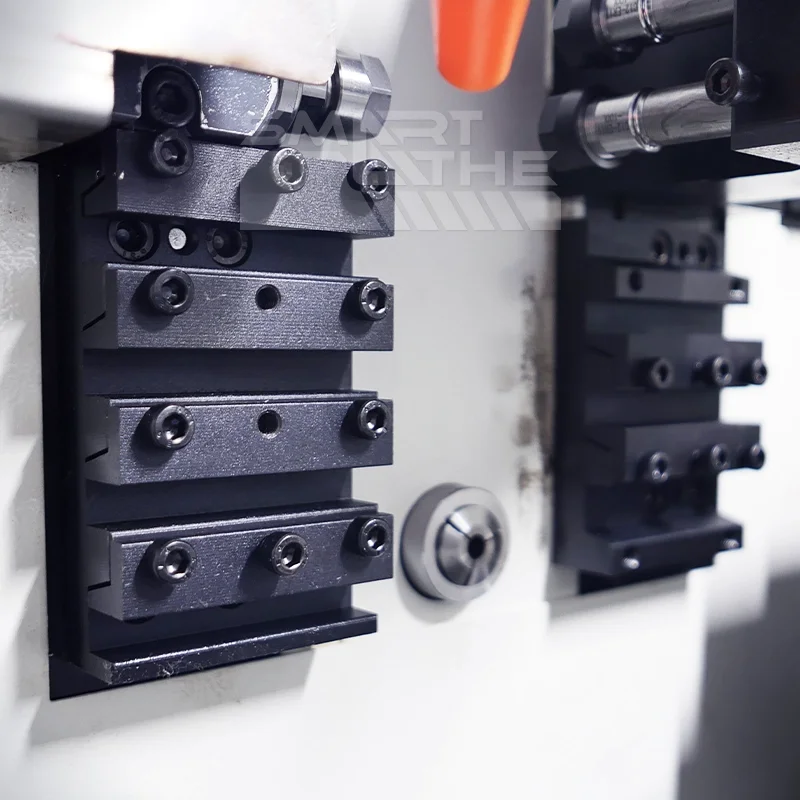

7 Tool Holders
3 Radial

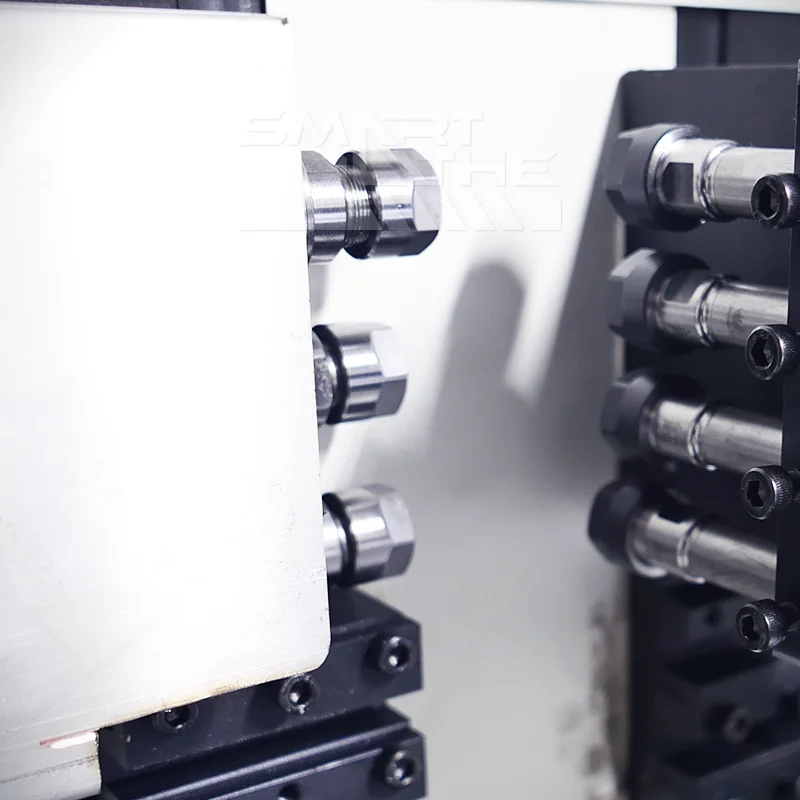

Live Tools

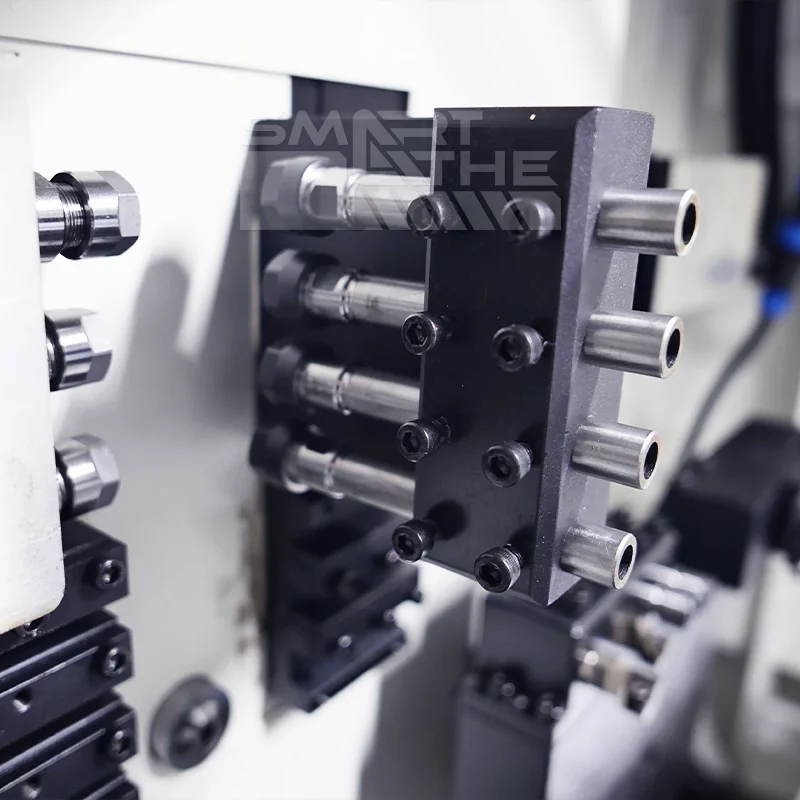

4 Axial Drilling
Tool Holders

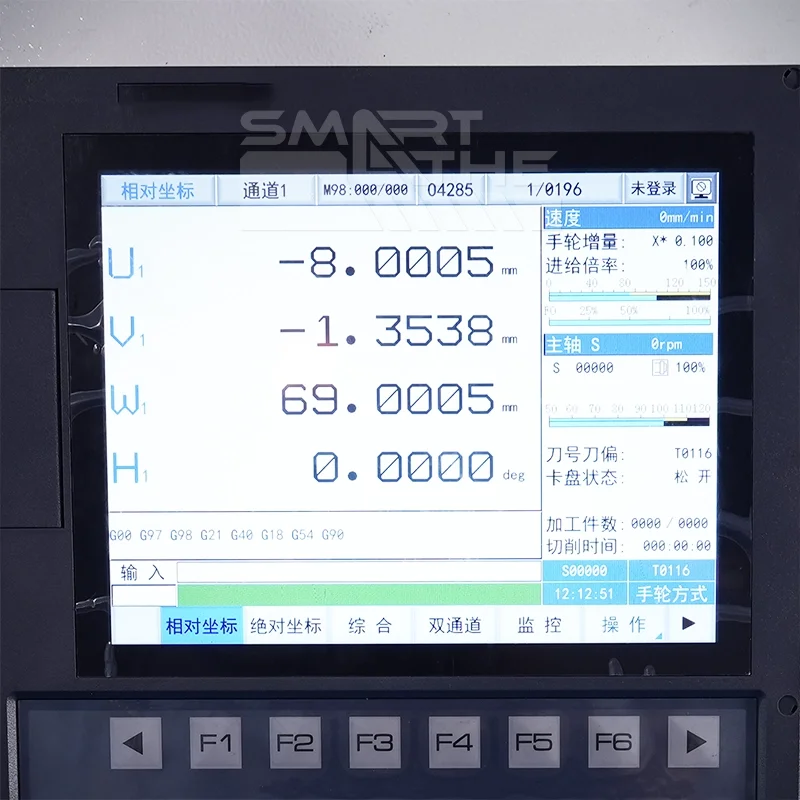

SMARTBRAIN
CNC SYSTEM

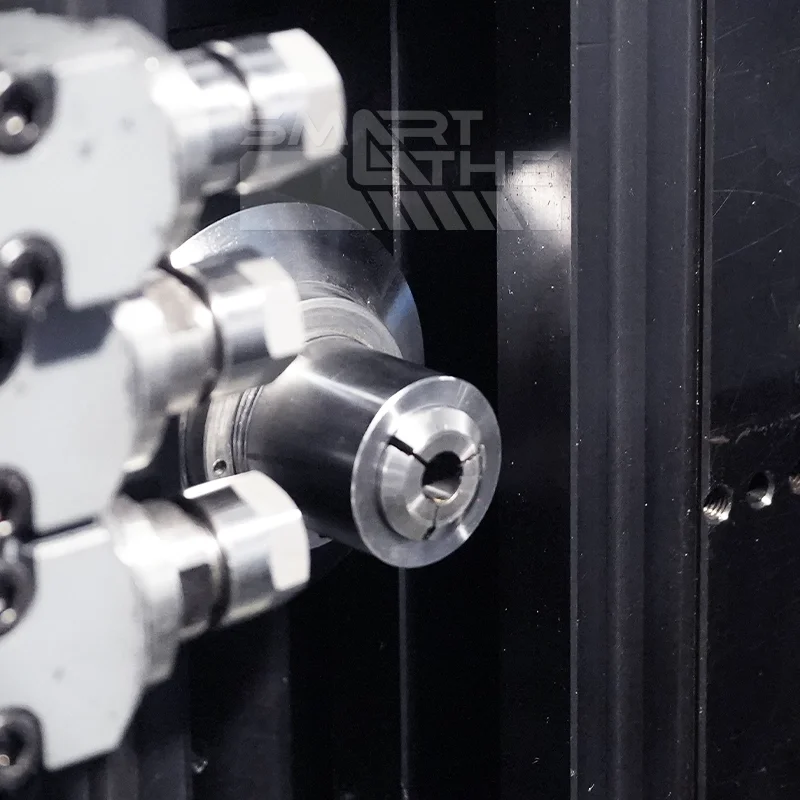

Guide Bush
Toolbox
User Manual
Built-in

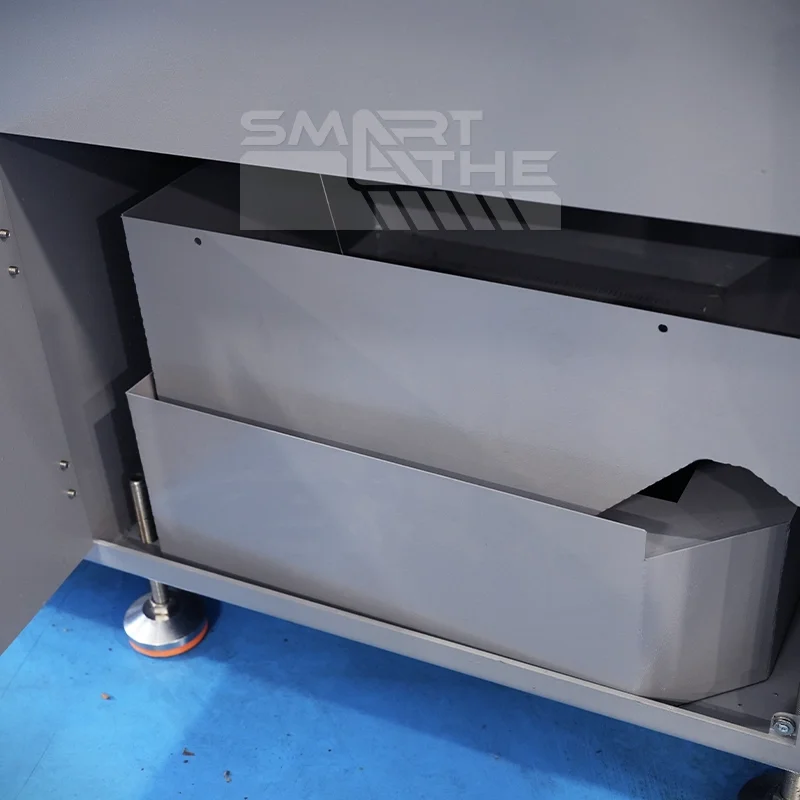

Coolant System

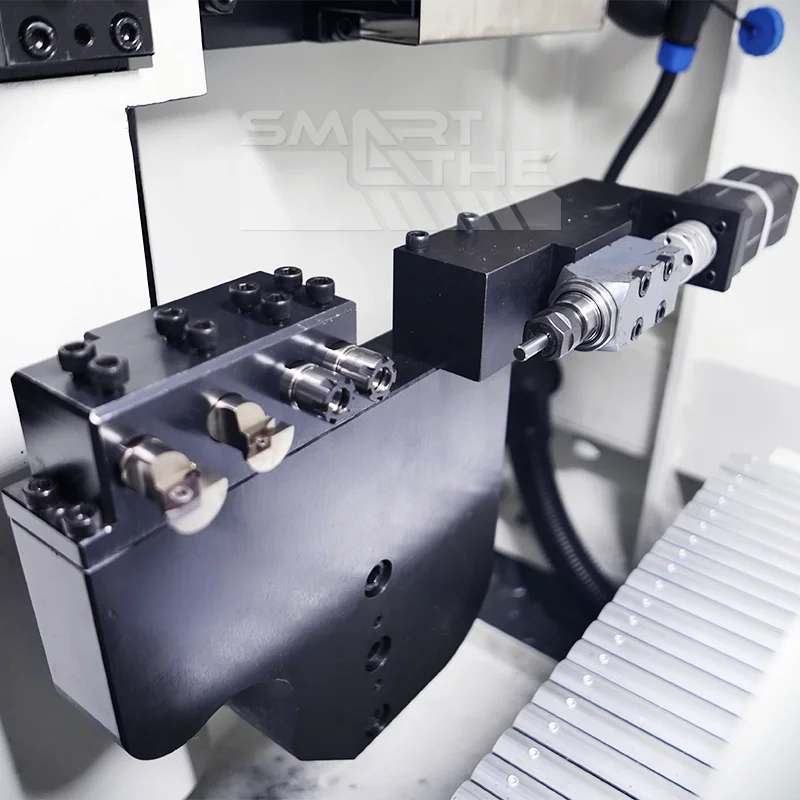

Sub-Spindle Modular
Tool Post

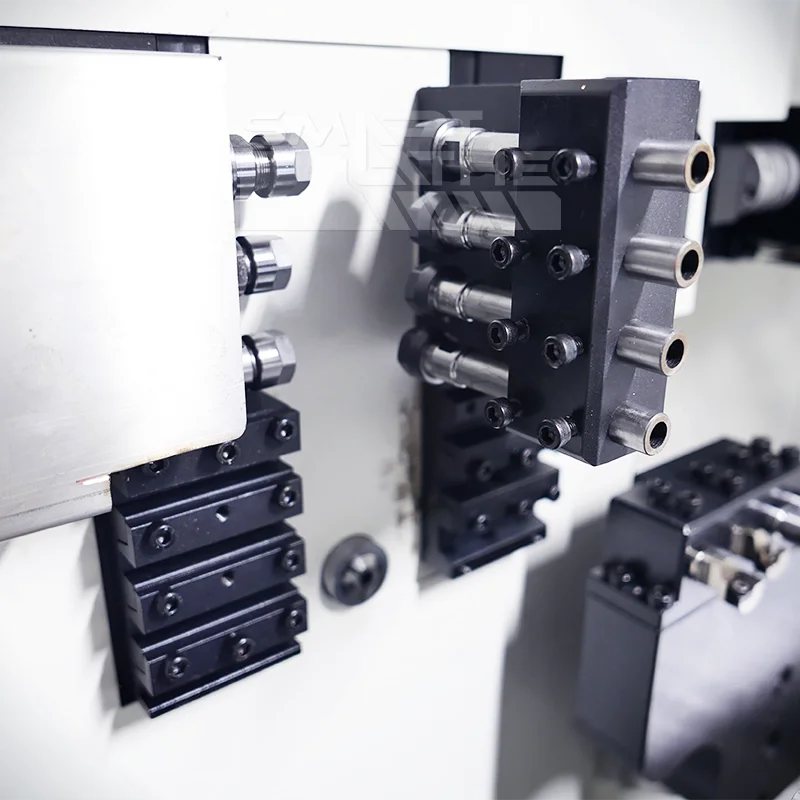

Spindle Modular
Tool Post

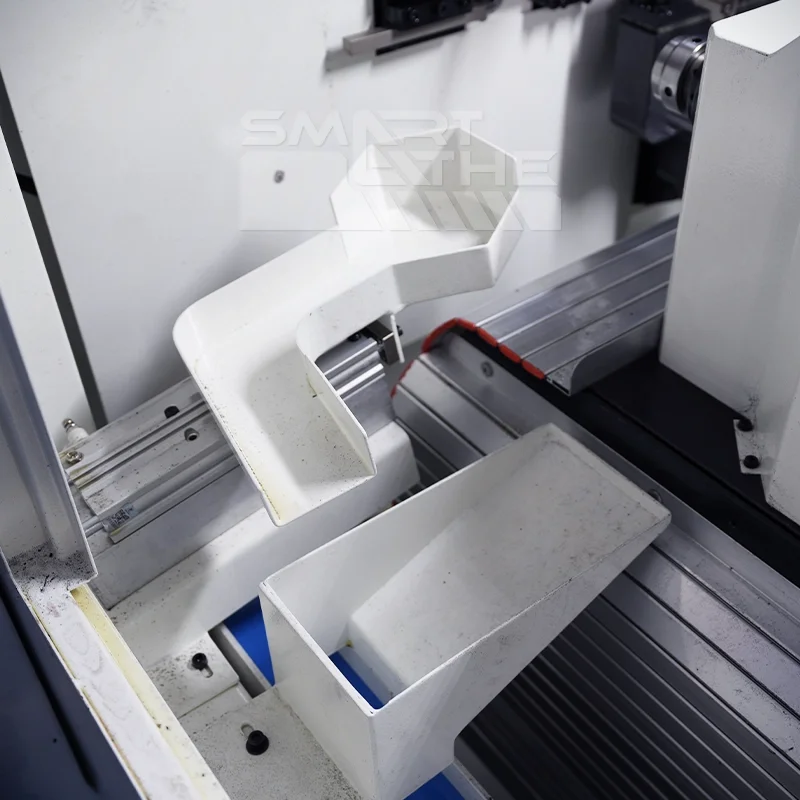

Part catcher

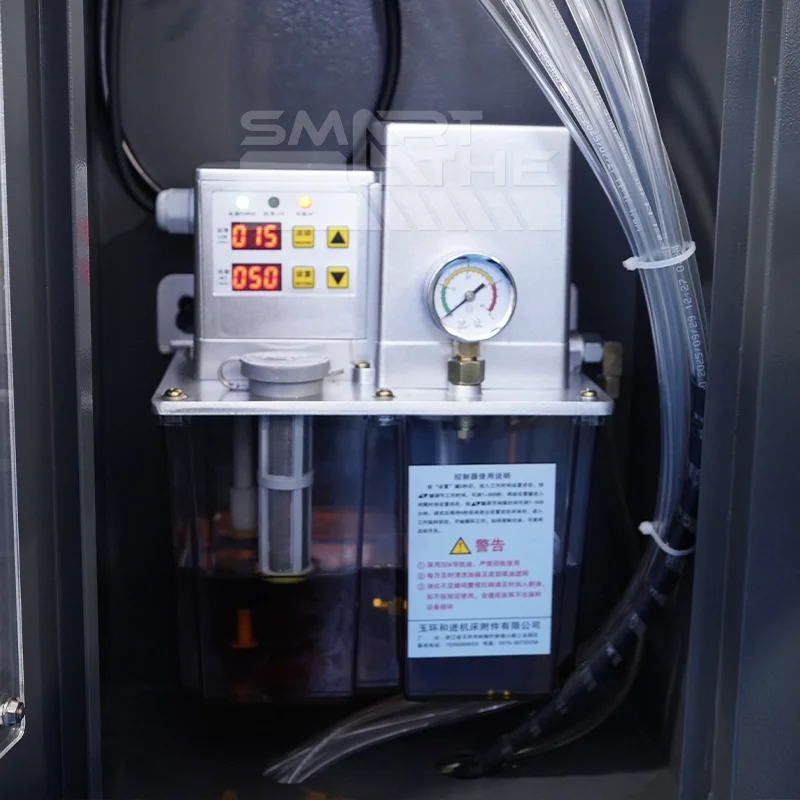

Lubrication System
Details
Technical Specifications |
SW-105 |
|---|---|
Max. Machining Length |
120mm(4.72") |
Turning Diameter |
Φ10mm(0.394") |
Max. Axial Drilling Diameter |
Φ5mm(0.197") |
Max. Axial Tapping Size |
M4 |
Max. Radial Drilling Diameter |
Φ4mm(0.157") |
Spindle Speed(Main/Sub) |
8000RPM/8000RPM |
Travel |
|
Z1/Z2 Axis |
120mm(4.72") |
X1/X2 Axis |
50(1.97")/200mm(7.87") |
Y Axis |
150mm(5.91") |
Rapid Speed (Z1/Z2/X1/Y) |
20m/min |
Rapid Speed (X2) |
40m/min |
Machining Accuracy |
±0.01mm |
Surface Roughness |
≤Ra 1.6μm |
Tools |
|
Turning Tool |
Main Spindle: 7×□10mm |
Drilling Tool |
4 pcs |
Live Tool |
Main Spindle: 3 pcs |
Motor |
|
Spindle Drive Power |
Main & Sub: 1.9KW |
Live Tool Drive Power |
0.4KW |
Coolant Pump |
0.25KW |
CNC Control |
|
Controller |
SMARTBRAIN |
Dimensions |
|
Footprint |
1718×1060×1586mm |
Weight |
1280kg |
Power Supply & Air Source |
|
Total Power |
6KW |
Voltage |
AC 380V 50Hz 3 Phase |
Air Pressure |
0.4-0.6Mpa |
Application
This type of lathe is particularly useful for producing long and slender parts, such as medical instruments, watch components, and aerospace parts, where high precision and accuracy are required. The machine's advanced technology and flexibility make it ideal for mass production, prototyping, and customized production.
Swiss lathes be used extensively to produce parts for the electronics and semiconductor industries, medical technology, aerospace, and high-end industrial markets applications. Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameters up to Φ10 mm
