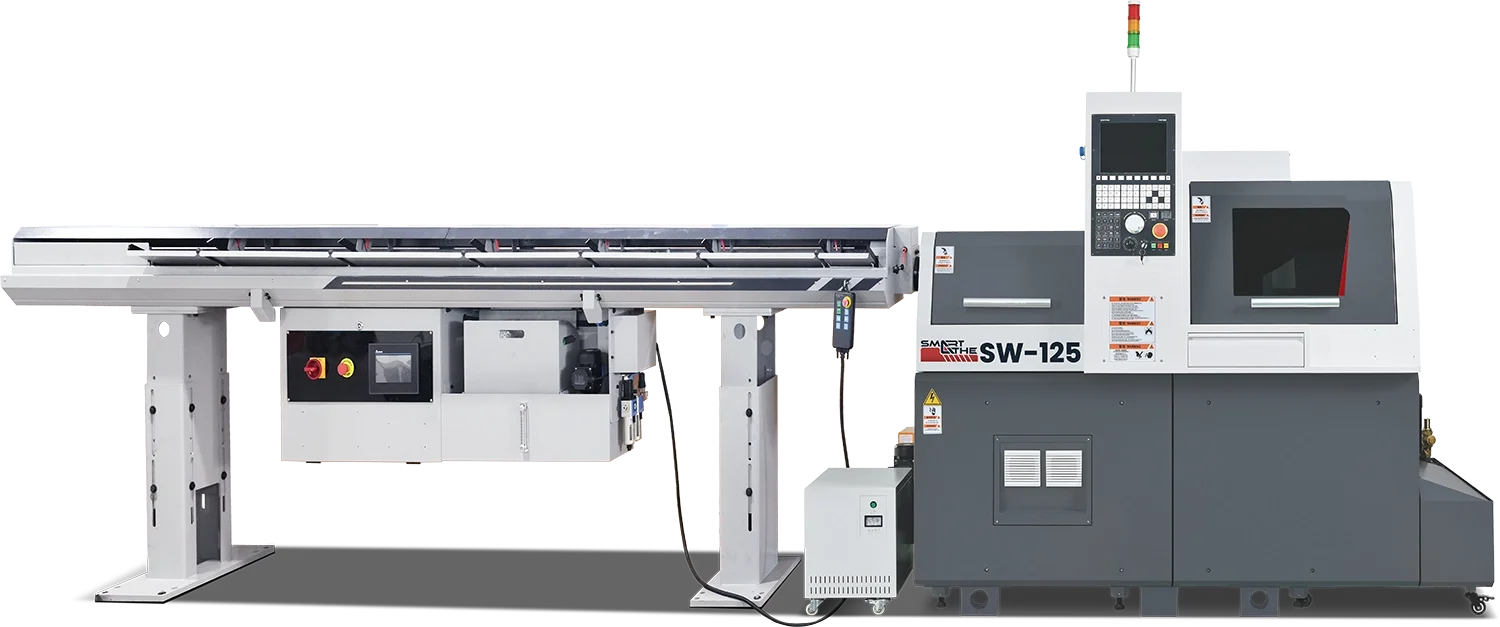

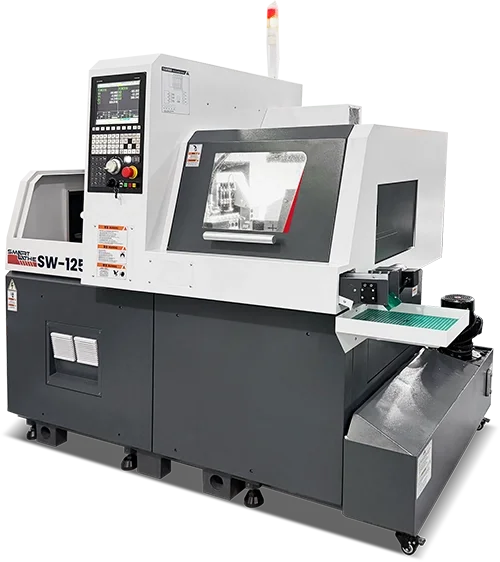

SW-125
Swiss Type CNC Lathe

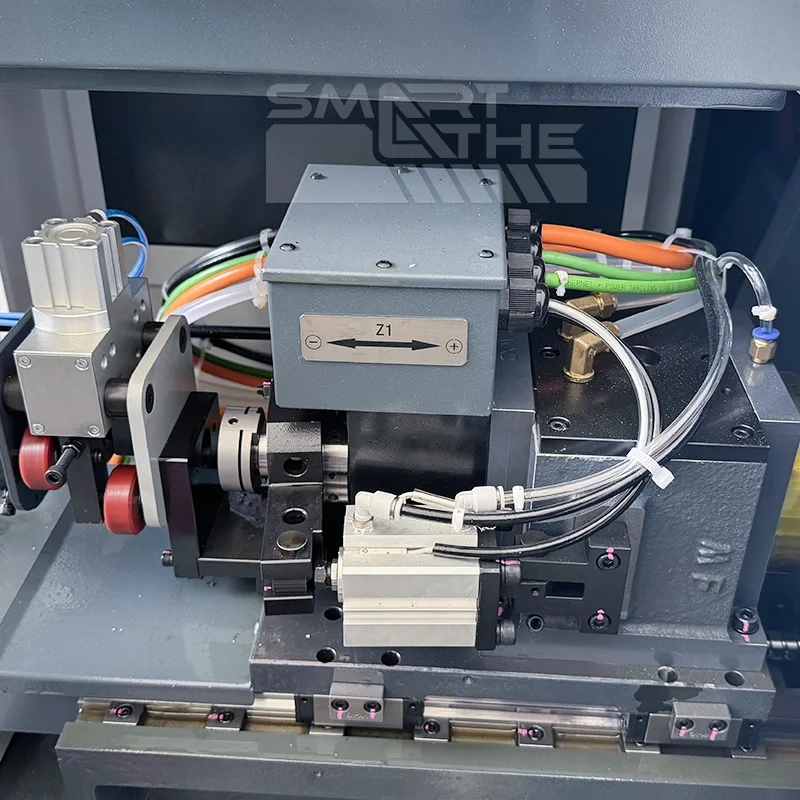

The SW-125 Swiss-type lathe uses a sliding headstock and a guide bushing to support the workpiece, allowing for precise and accurate machining of small and intricate parts. The machine is known for its ability to perform multiple operations on a single workpiece, including turning, drilling, milling, and tapping, in a single setup, which reduces the need for additional machines and handling.
STANDARD CONFIGURATION
10
Core Features for High-precision CNC Turning.

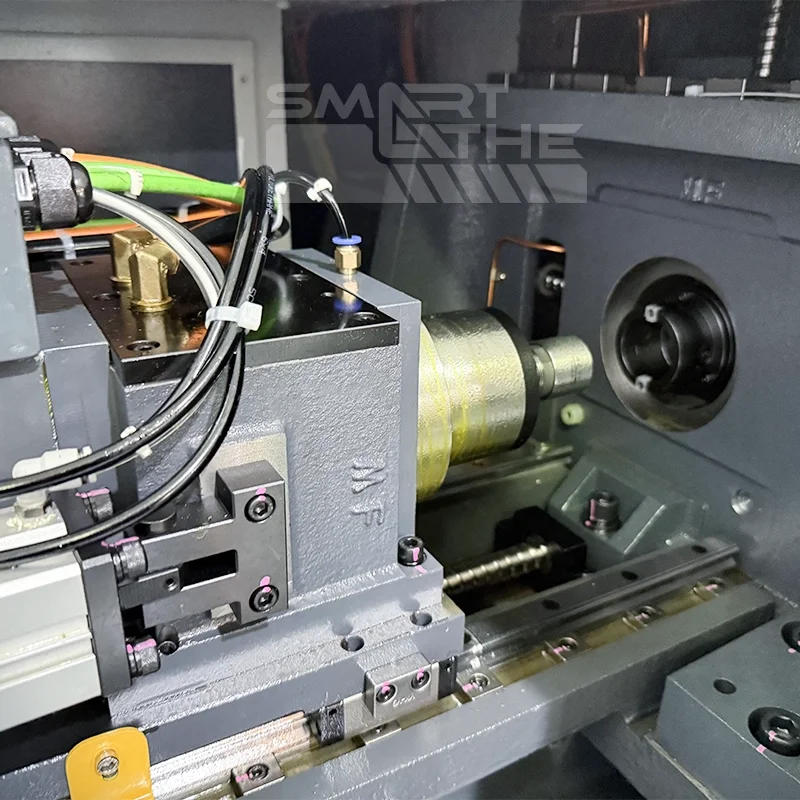

Guide Bush

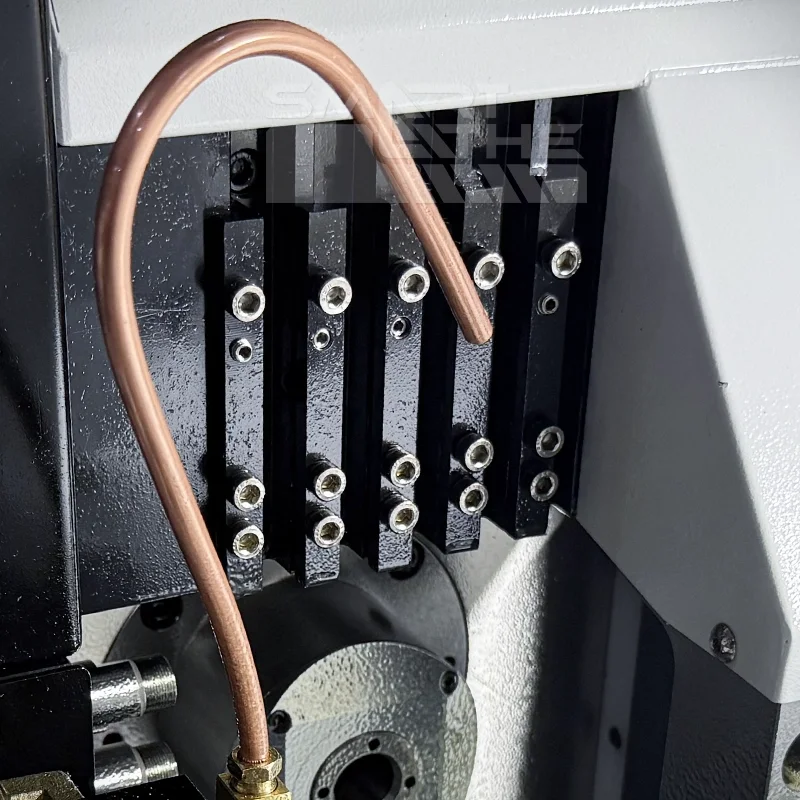

Tool Holder
6-station
Turning Tools

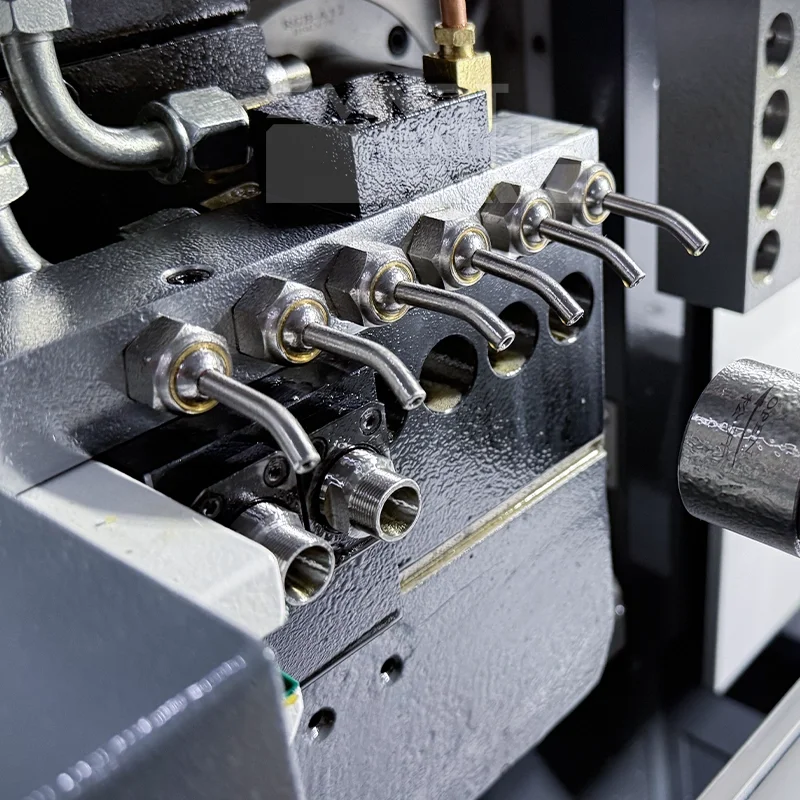

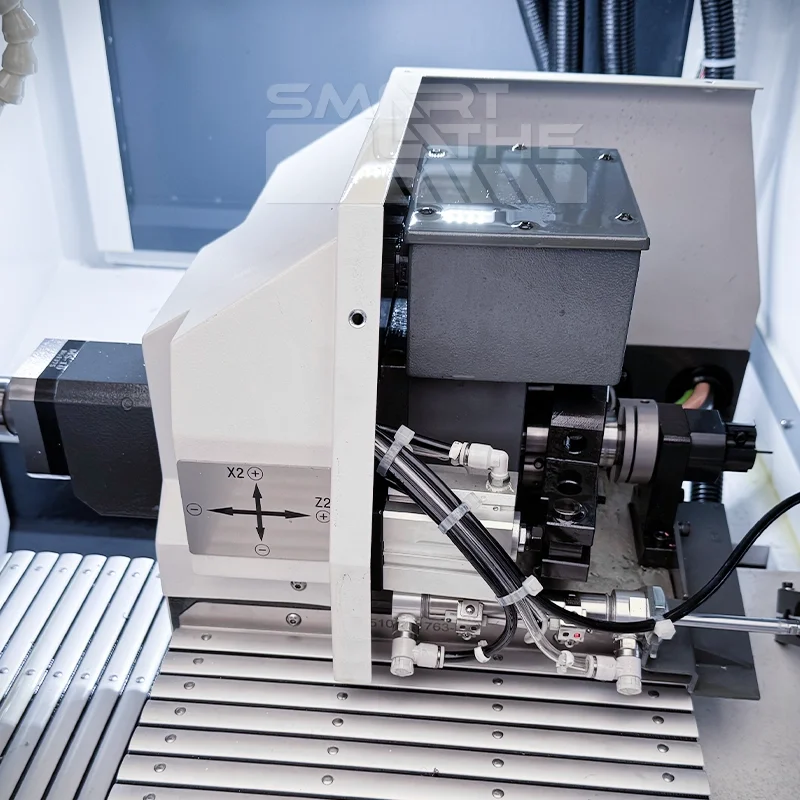

Sub Spindle
Tool Holder
LNC

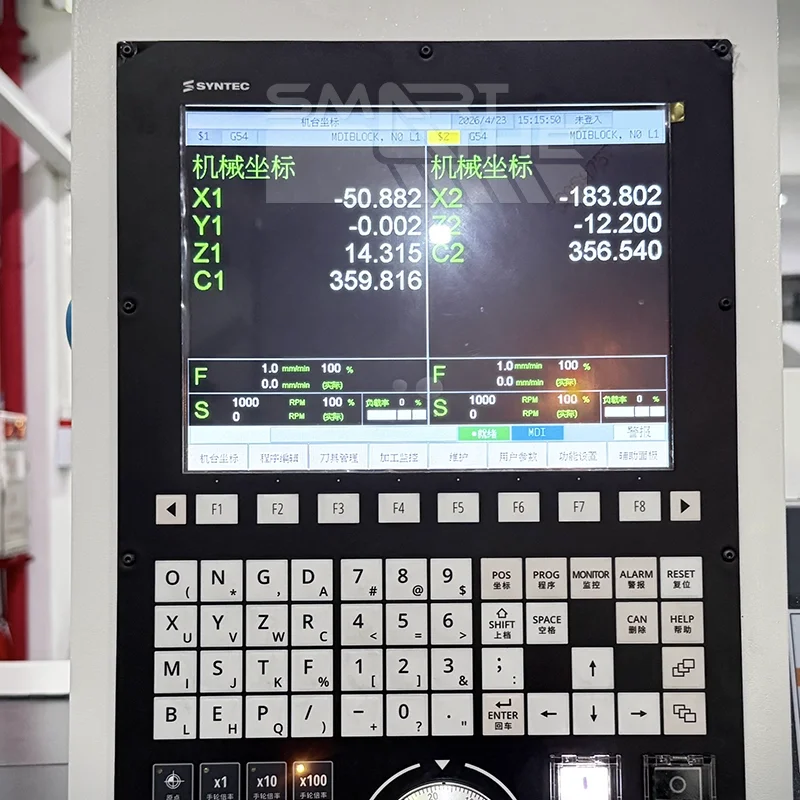

CNC SYSTEM

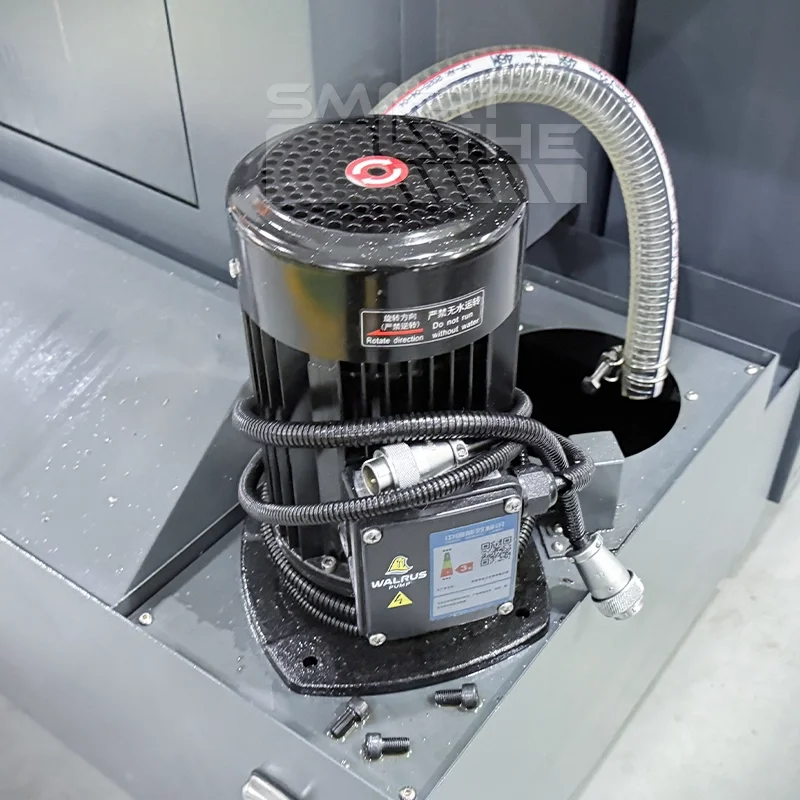

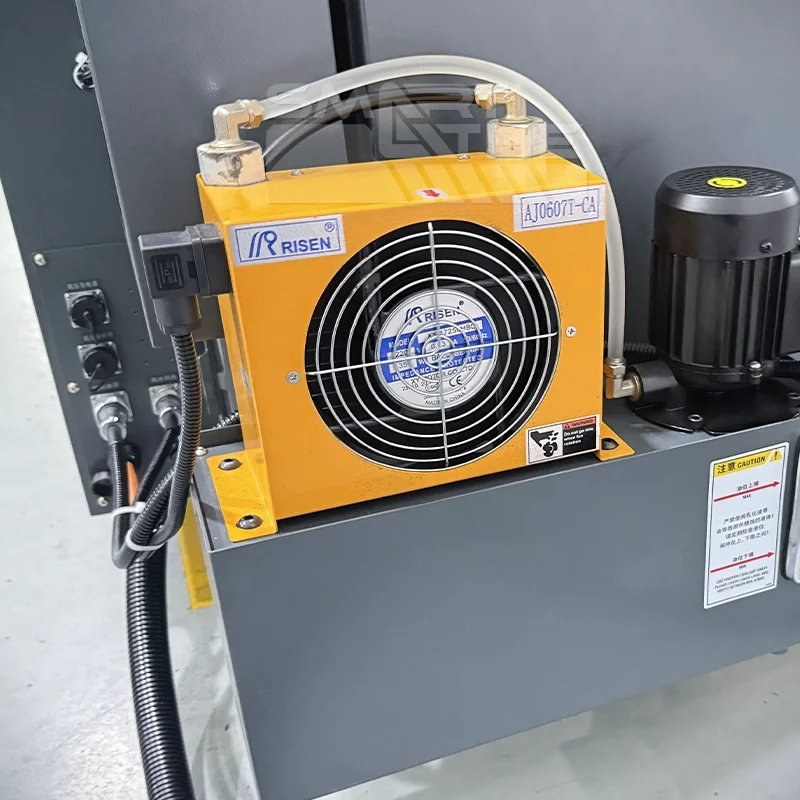

Coolant Pump
Toolbox
User Manual

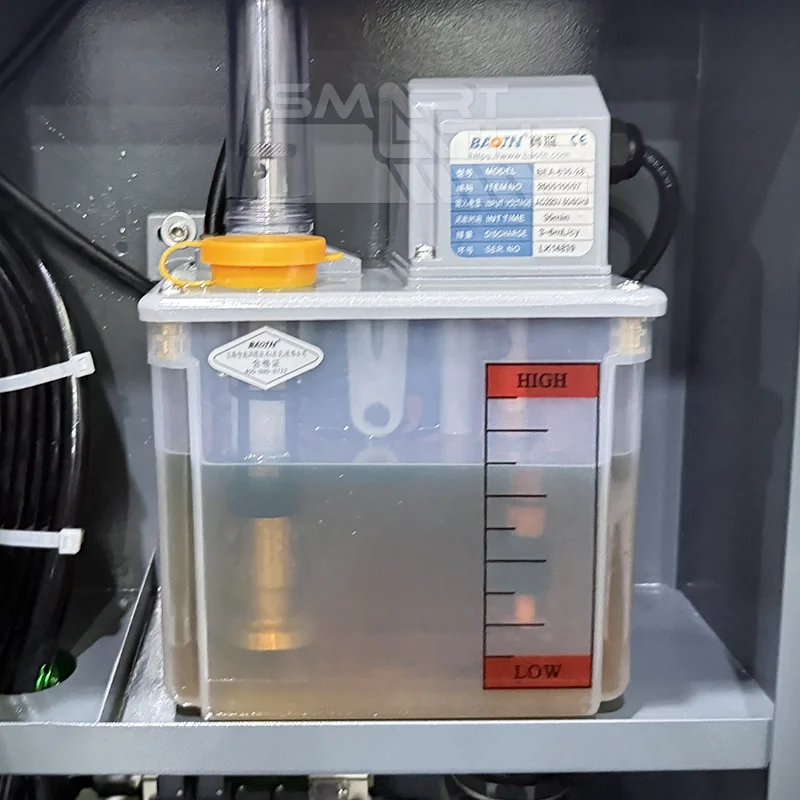

Lubrication System

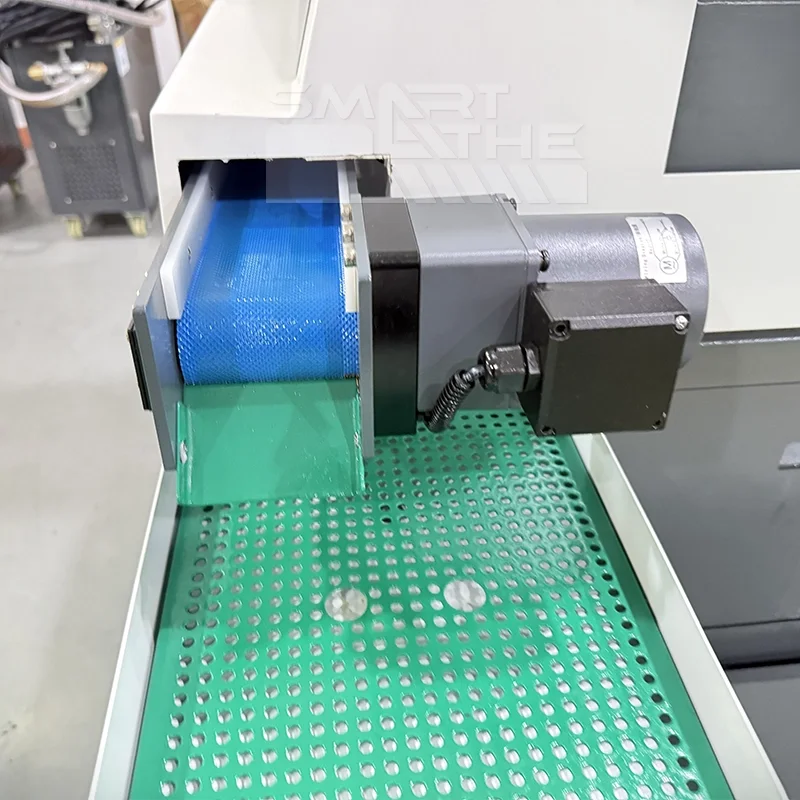

Part Catcher

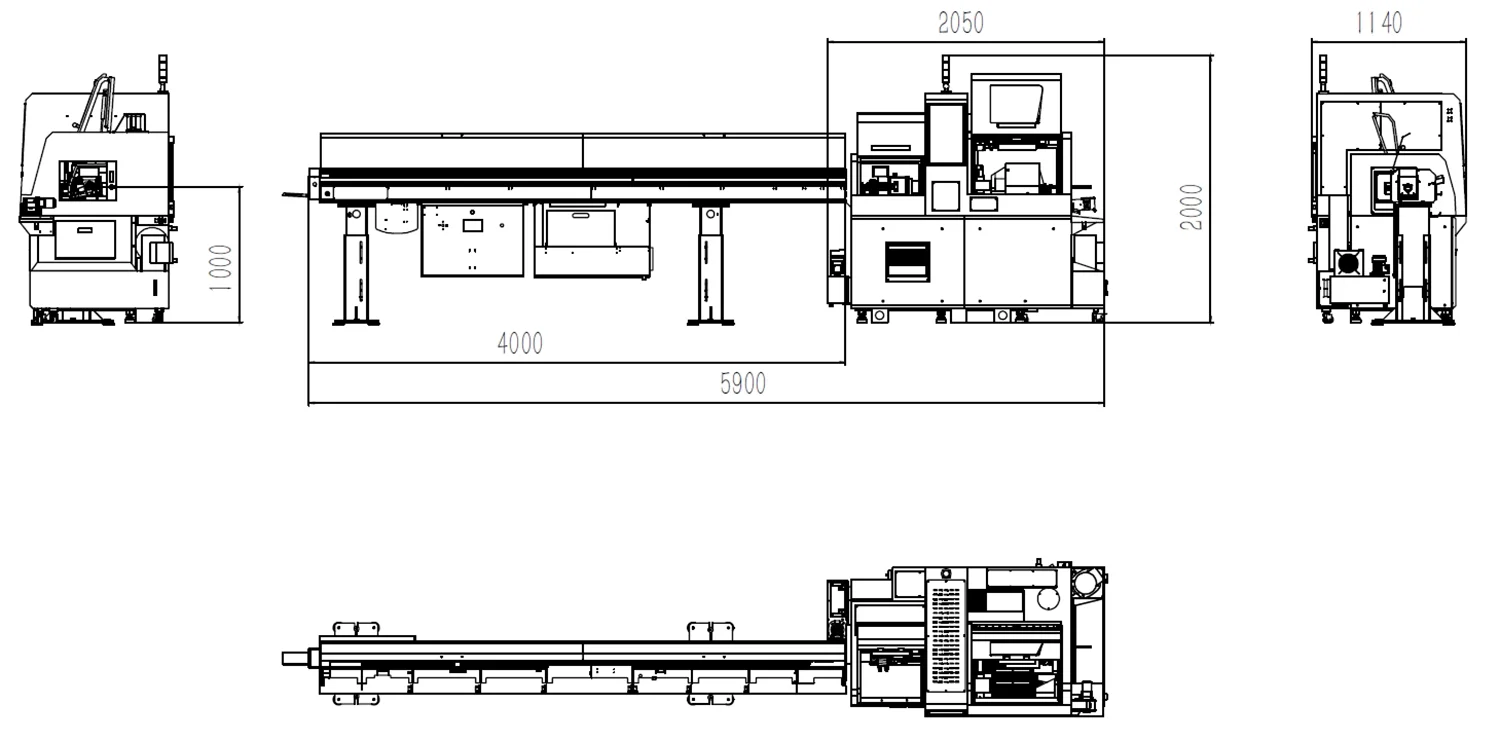

Installation Dimensions
Details
Technical Specifications |
SW-125 |
|---|---|
Max. Machining Length |
60mm(2.36") |
Turning Diameter |
Φ1-12mm(0.039"-0.472") |
Max. Axial Drilling Diameter |
Φ7mm(0.276") |
Max. Axial Tapping Size |
M5 |
Rated Spindle Speed(Main/Sub) |
3000RPM/3000RPM |
Max. Spindle Speed(Main/Sub) |
10000RPM/12000RPM |
Max. Radial Drilling Diameter |
Φ5mm(0.197") |
Max. Radial Tapping Size |
M5 |
Rated Speed of Side Living Tool |
6000RPM |
Max. Speed of Side Living Tool |
10000RPM |
Max. Extraction Length of Workpiece |
40mm(1.57") |

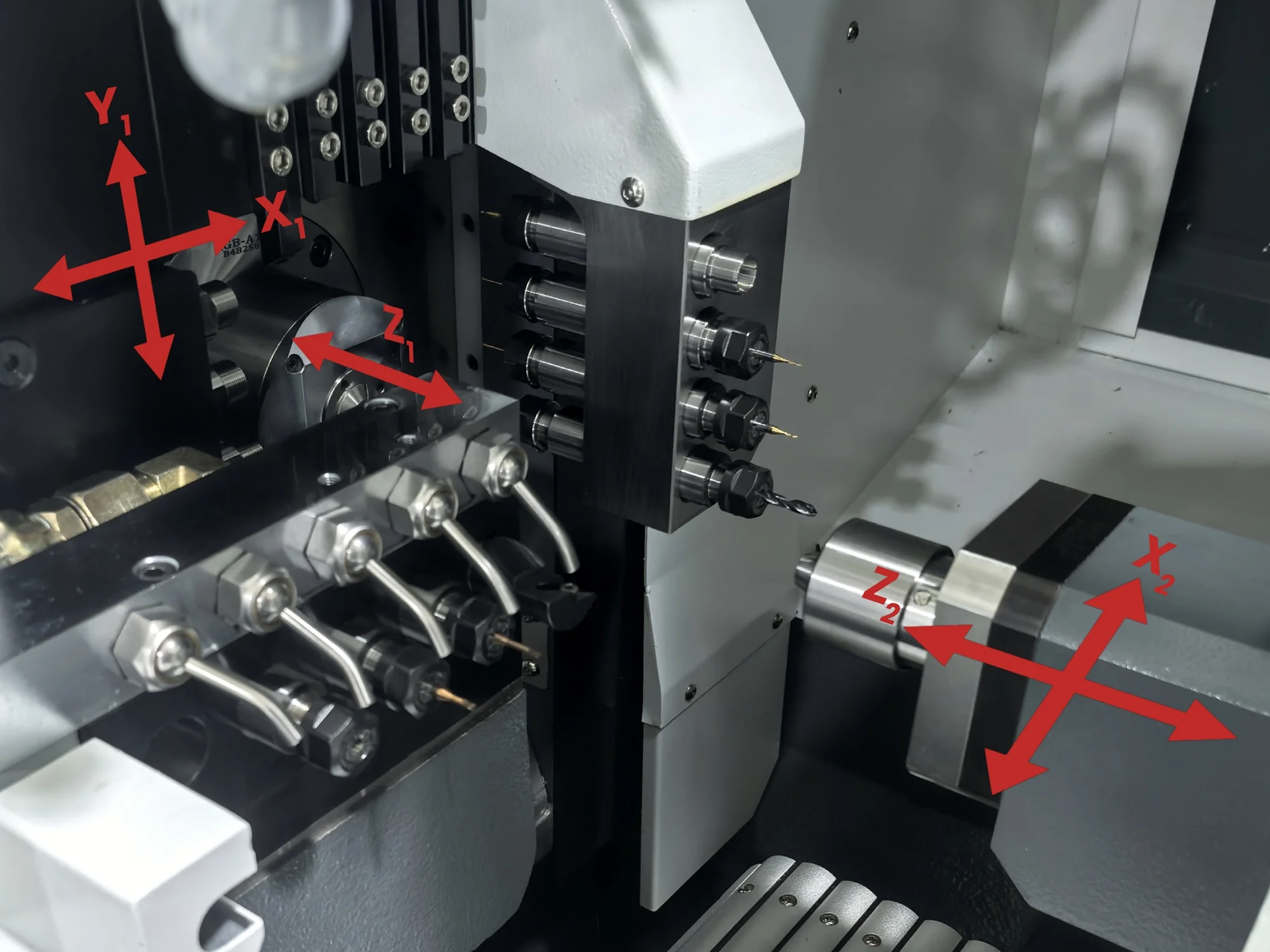

Travel |
|
Z1/Z2 Axis |
240mm(9.45")/170mm(6.69") |
X1/X2 Axis |
75(2.95")/415mm(16.34") |
Y Axis |
105mm(4.13") |
Rapid Speed (Z1/Z2/X2/Y) |
24m/min |
Rapid Speed (X1) |
18m/min |
Machining Accuracy |
±0.005mm |
Surface Roughness |
≤Ra 1.6μm |
Tools |
|
Turning Tool |
5×□10mm |
Sleeve |
Φ25×13Tmm |
Chuck Guide Bush |
|
Spindle Collet |
HA12 |
Living Tool Collet |
ER11 |
Bush |
HA12 |
CNC Control |
|
Controller |
Standard: SYNTEC |
Dimensions |
|
Footprint |
1350×900×1800mm |
Weight |
800kg |
Power Supply & Air Source |
|
Total Power |
5KW |
Voltage |
AC 380V 50Hz 3 Phase |
Air Pressure |
0.4-0.6Mpa |
Application
This type of lathe is particularly useful for producing long and slender parts, such as medical instruments, watch components, and aerospace parts, where high precision and accuracy are required. The machine's advanced technology and flexibility make it ideal for mass production, prototyping, and customized production.
Swiss lathes be used extensively to produce parts for the electronics and semiconductor industries, medical technology, aerospace, and high-end industrial markets applications. Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameters up to Φ12 mm
