SW-13
Swiss Type CNC Lathe

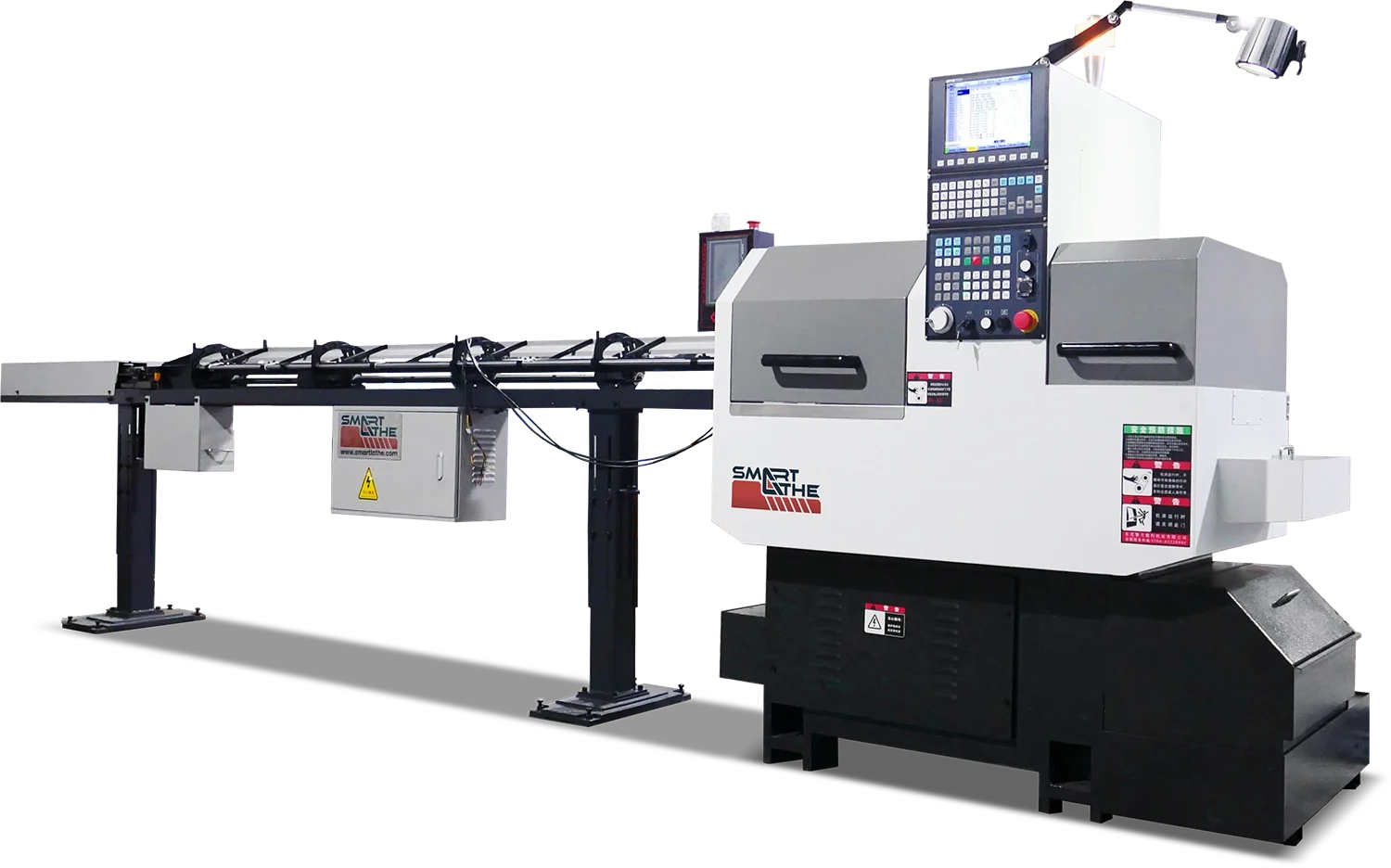

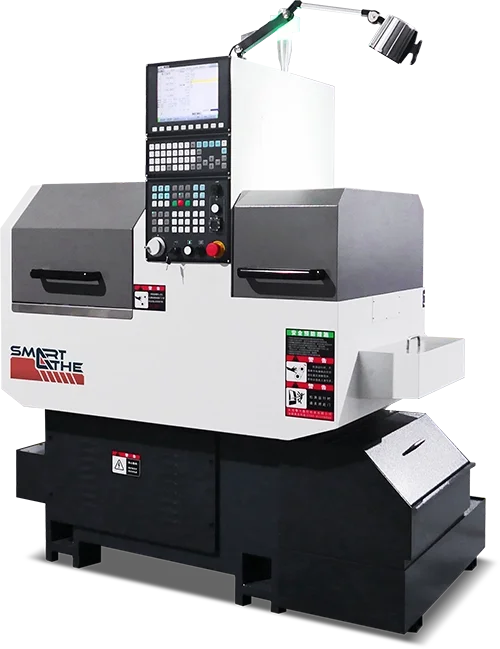

The SW-13 Swiss-type lathe uses a sliding headstock and a guide bushing to support the workpiece, allowing for precise and accurate machining of small and intricate parts. The machine is known for its ability to perform multiple operations on a single workpiece, including turning, drilling, milling, and tapping, in a single setup, which reduces the need for additional machines and handling.
STANDARD CONFIGURATION
10
Core Features for High-precision CNC Turning.
Pneumatic

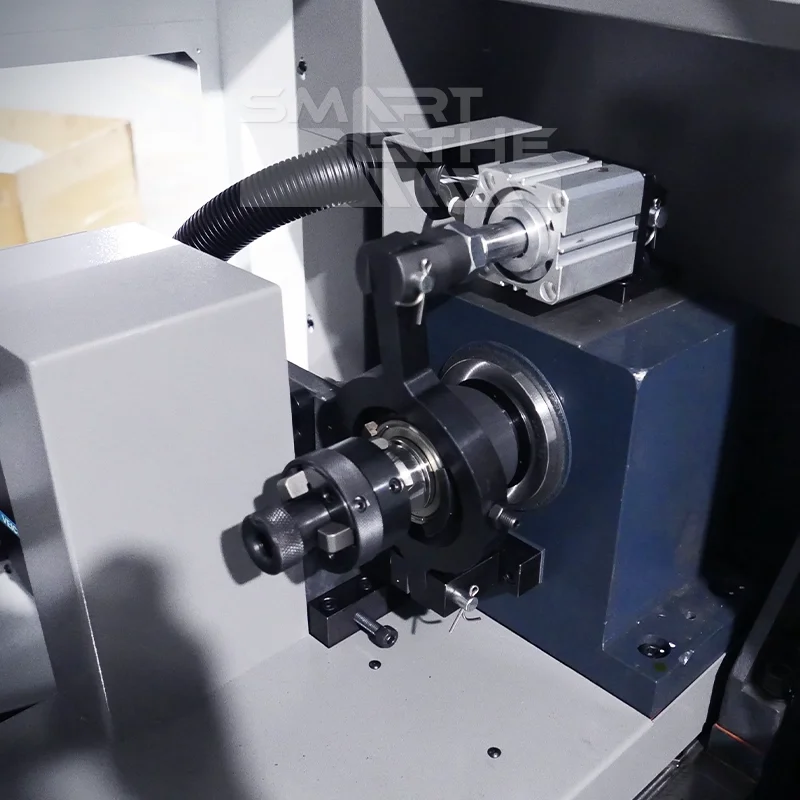

Clamping

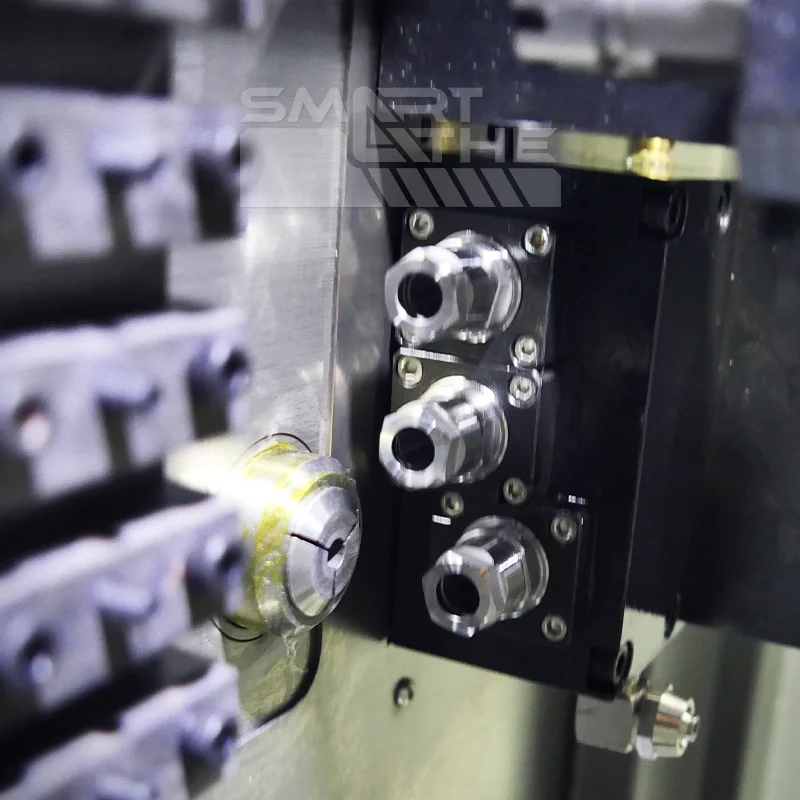

Live Tools
6-station

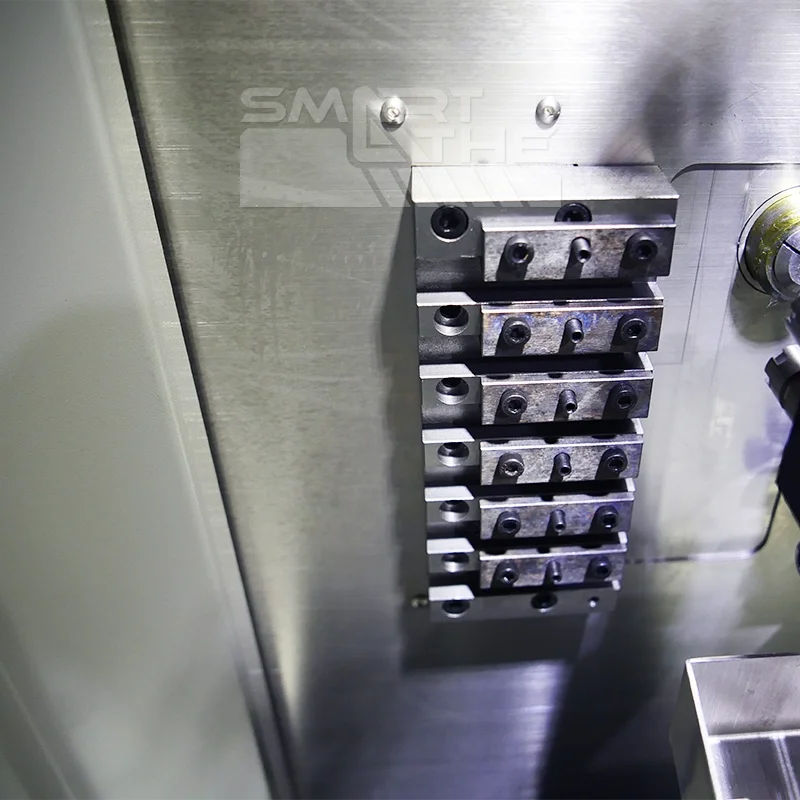

Turning Tools

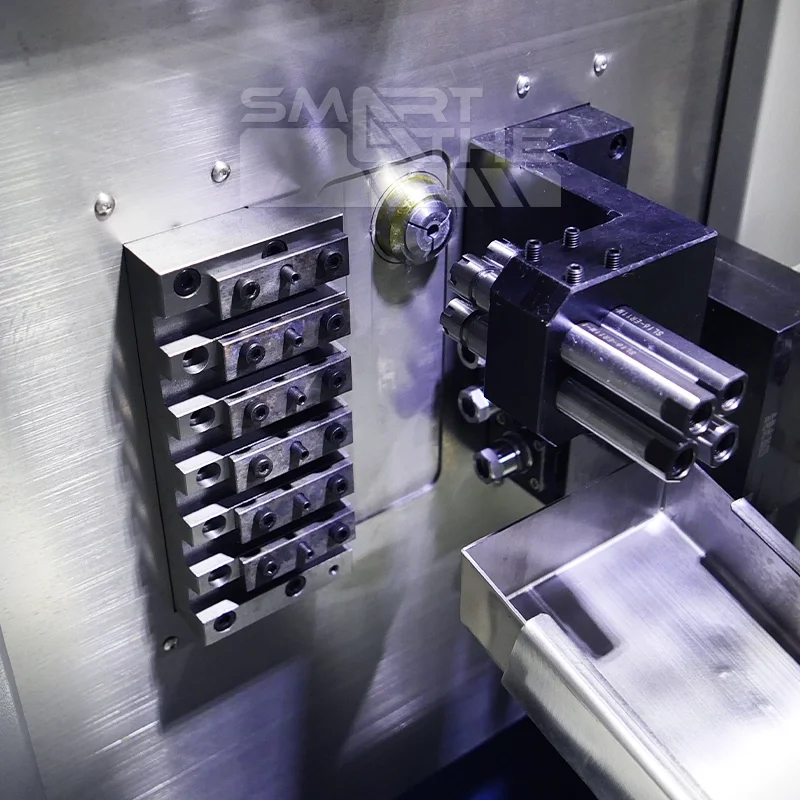

4-position
Drilling Tools

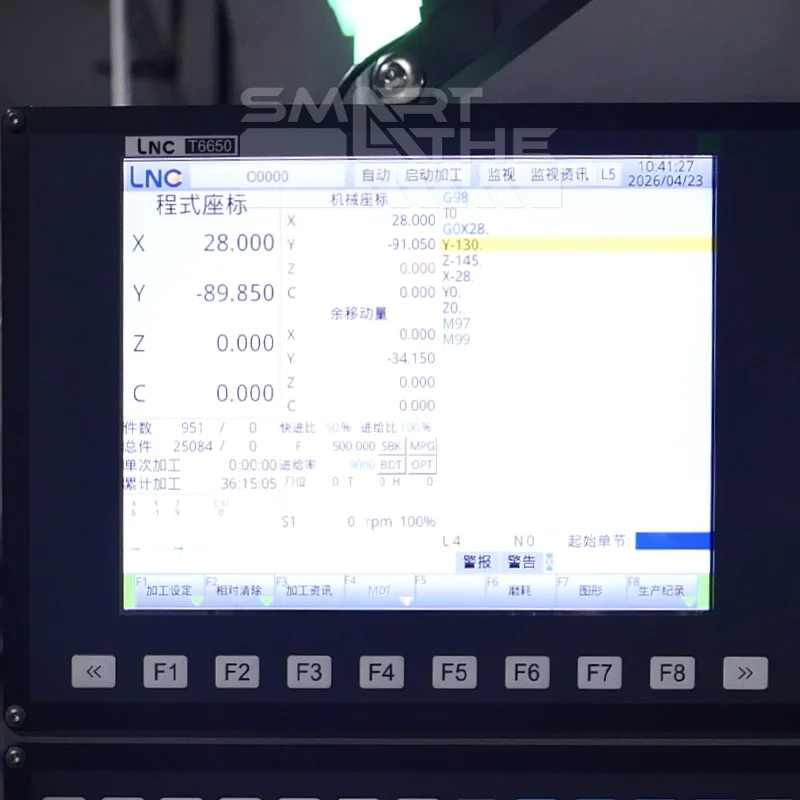

LNC
CNC SYSTEM

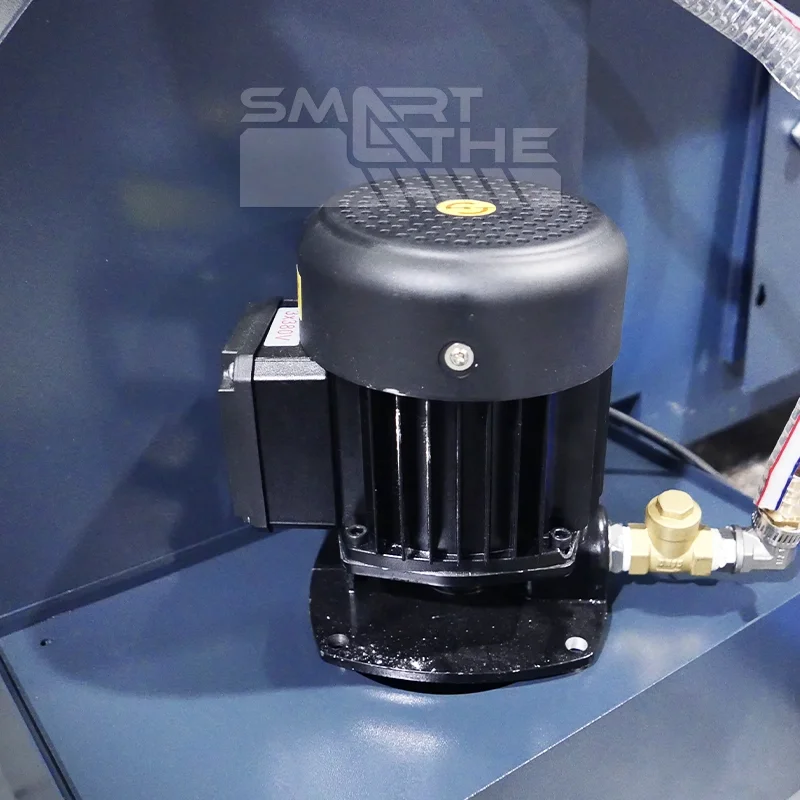

Coolant Pump
Toolbox
User Manual

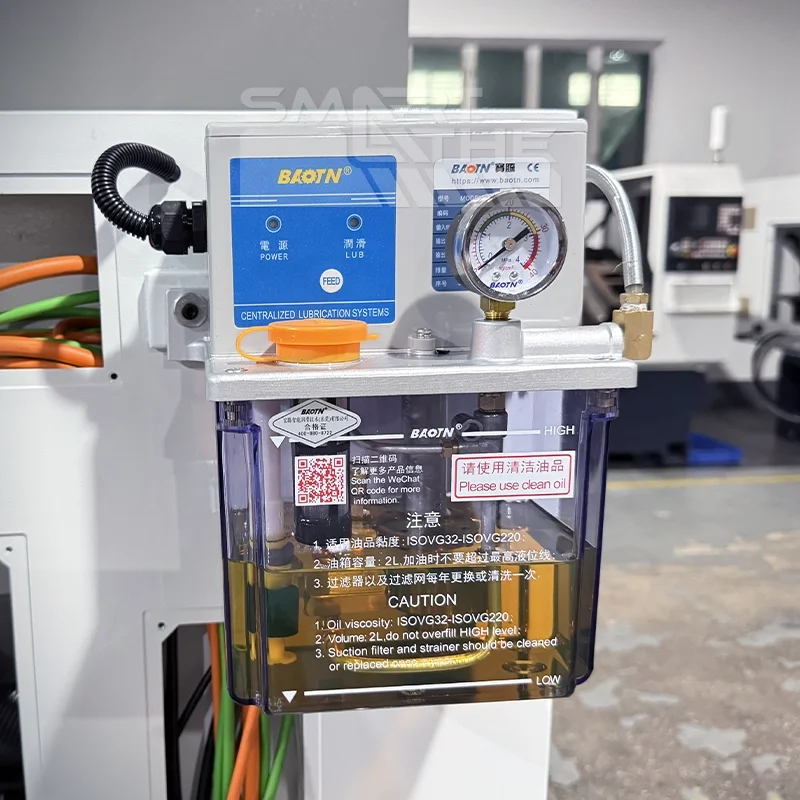

Lubrication System

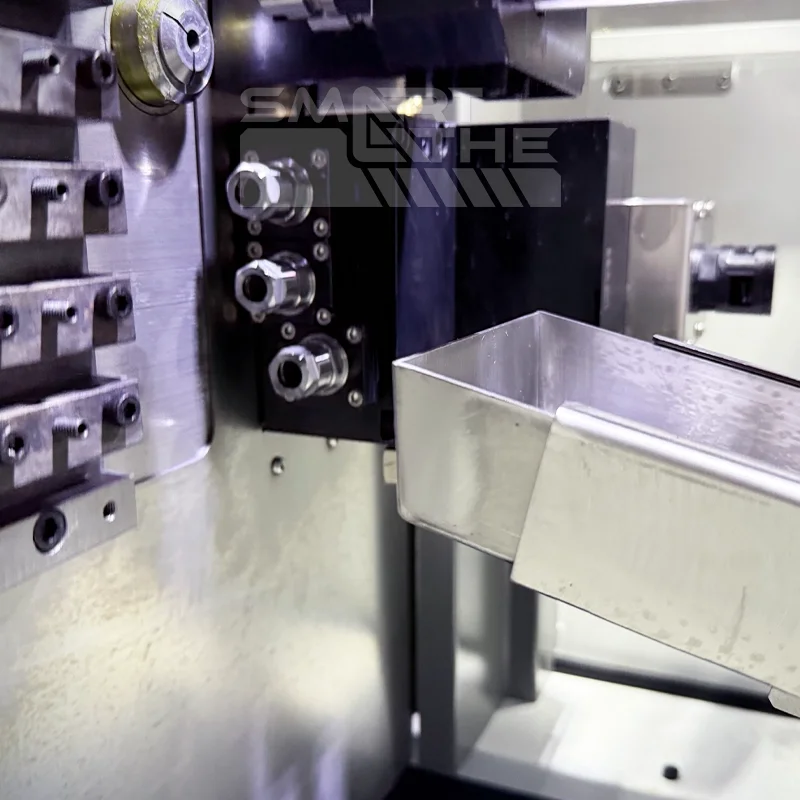

Part Catcher

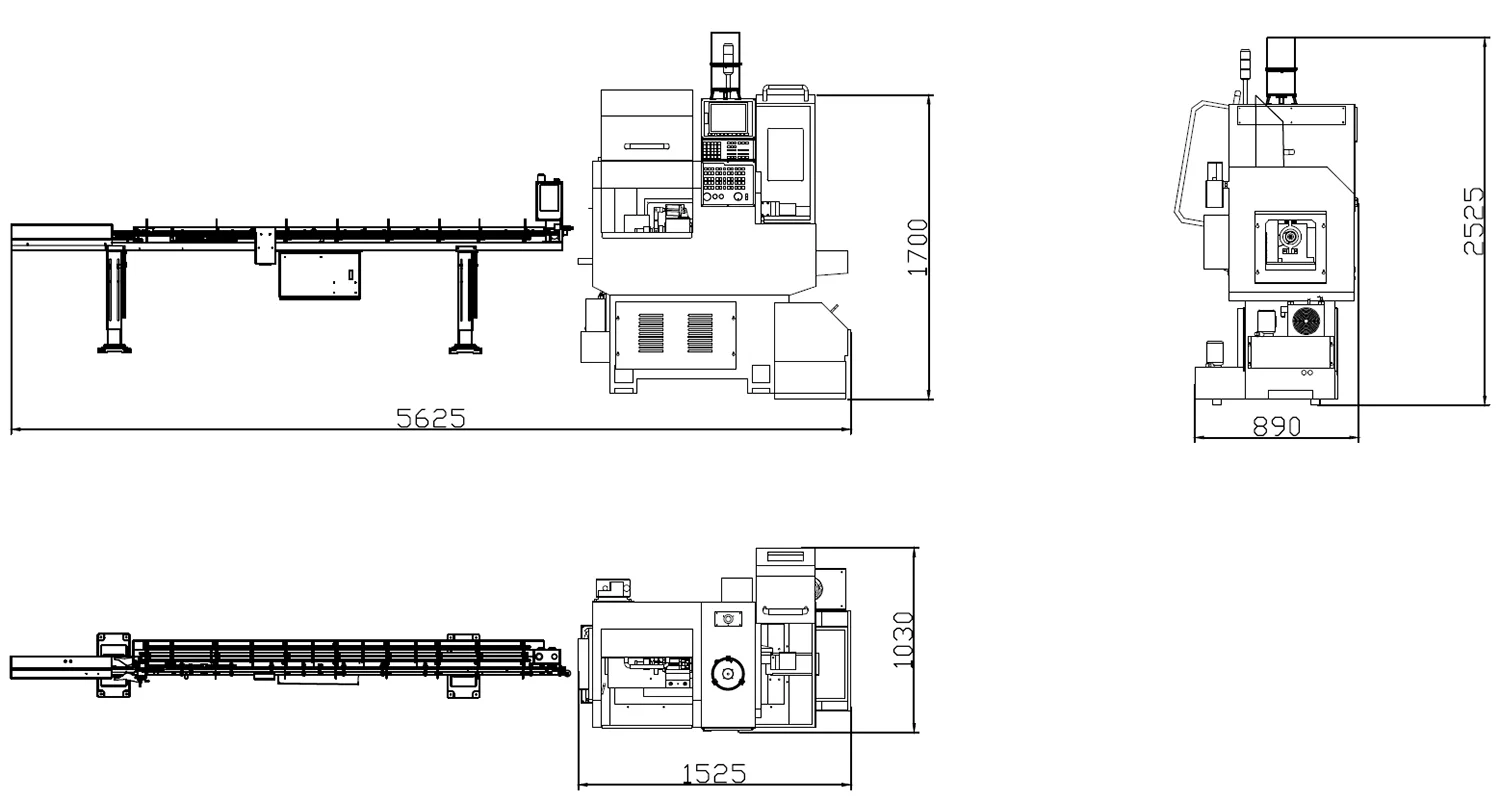

Installation Dimensions
Details
Technical Specifications |
SW-06 |
|---|---|
Max. Machining Length |
140mm(5.51") |
Turning Diameter |
Φ1-13mm(0.039"-0.512") |
Spindle Speed |
5000RPM |
Spindle Motor |
2.3KW |
Travel |
|
Z Axis |
140mm(5.51") |
X Axis |
60(2.36") |
Y Axis |
135mm(5.31") |
Rapid Speed (Z/X/Y) |
18m/min |
Machining Accuracy |
±0.01mm |
Surface Roughness |
≤Ra 1.6μm |
Tools |
|
Turning Tool |
6×□10mm |
Drilling Tools |
4×ER11 |
Radial Live Tools |
3×ER11 @5000rpm |
CNC Control |
|
Controller |
LNC |
Dimensions |
|
Footprint |
1350×900×1800mm |
Weight |
800kg |
Power Supply & Air Source |
|
Total Power |
5KW |
Voltage |
AC 380V 50Hz 3 Phase |
Air Pressure |
0.4-0.6Mpa |
Application
This Swiss-type CNC lathe is designed for small and slender parts with bar diameters from 1 mm to 13 mm.

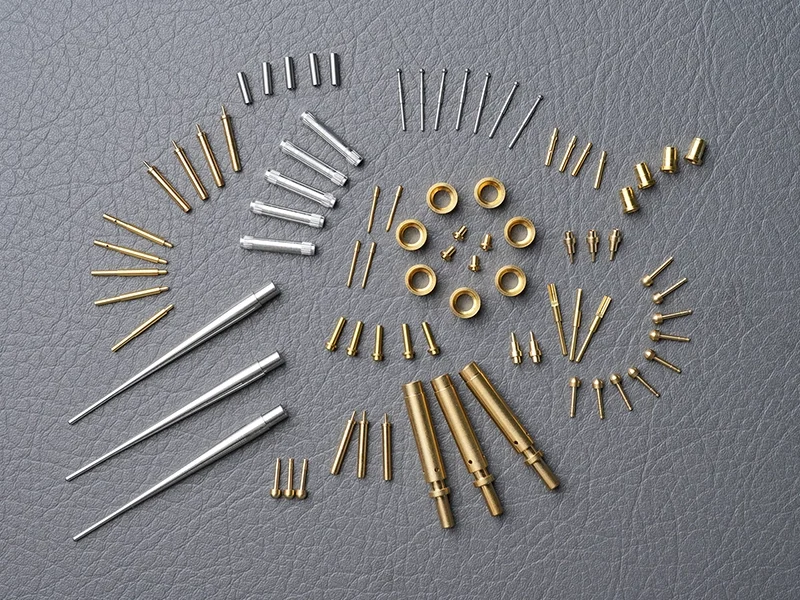

It’s ideal for electronic connectors, medical parts, automotive components, optical elements, and watch parts requiring high precision.
With its sliding headstock and rigid structure, it ensures excellent accuracy for long, thin workpieces.
Widely used in electronics, medical, automotive, optical, watchmaking, and aerospace industries, it supports both mass production and custom machining.
Compatible with brass, bronze, aluminum, steel, stainless steel, and engineering plastics.
