SW-126

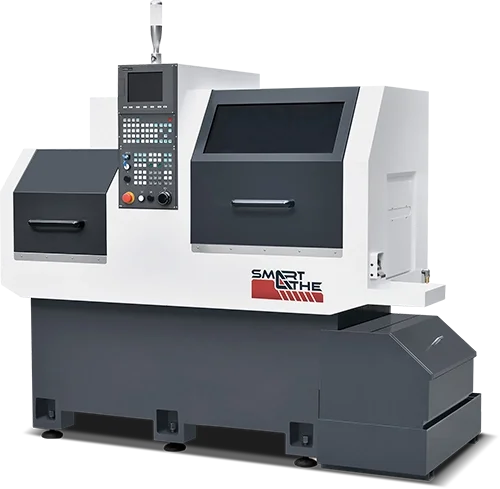

Swiss Type CNC Lathe
The SW-126 Swiss-type lathe uses a sliding headstock and a guide bushing to support the workpiece, allowing for precise and accurate machining of small and intricate parts. The machine is known for its ability to perform multiple operations on a single workpiece, including turning, drilling, milling, and tapping, in a single setup, which reduces the need for additional machines and handling.
STANDARD CONFIGURATION
13
Core Features for High-precision CNC Turning.

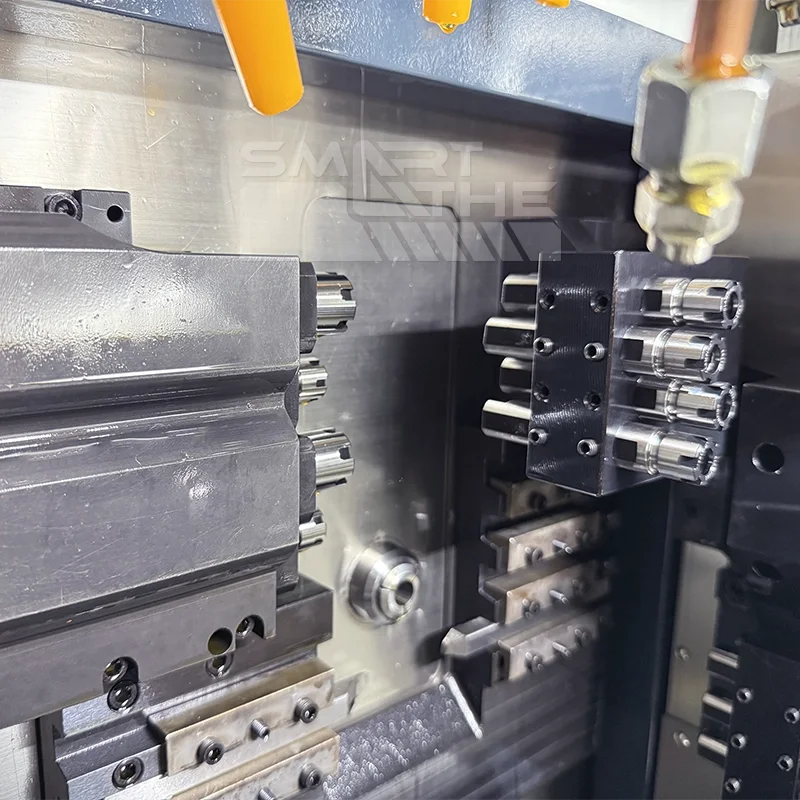

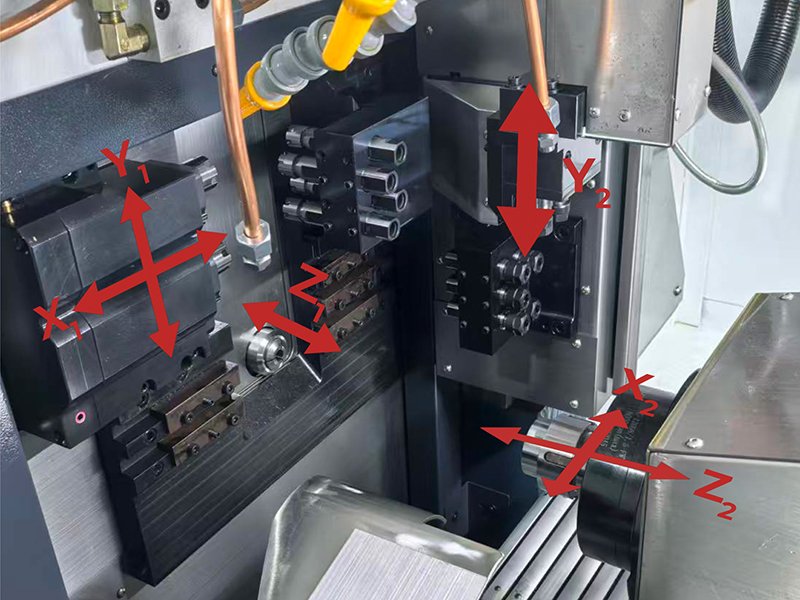

Modular Tool Post

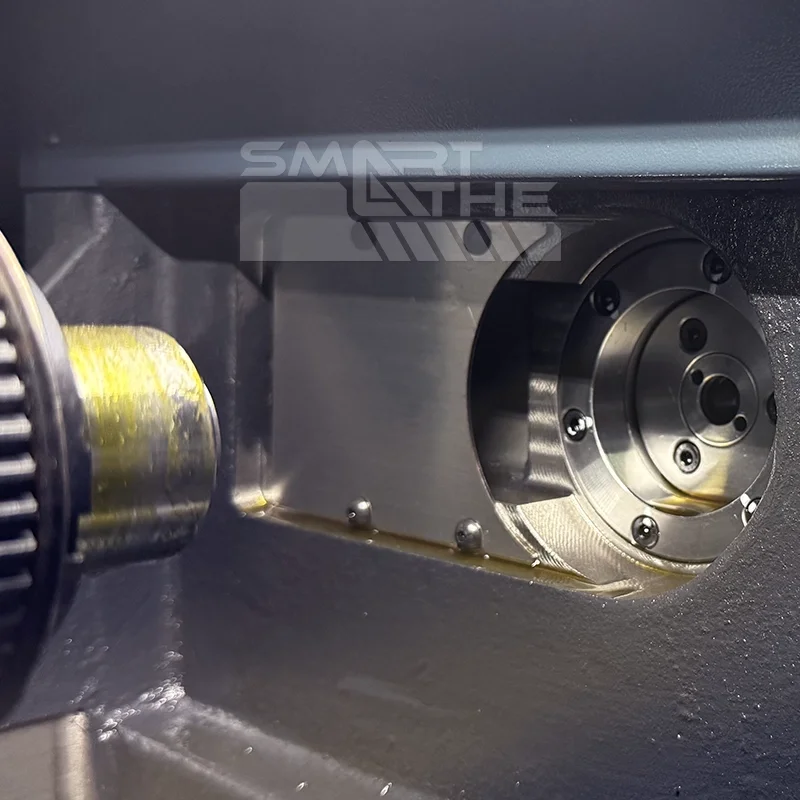

Guide Bush

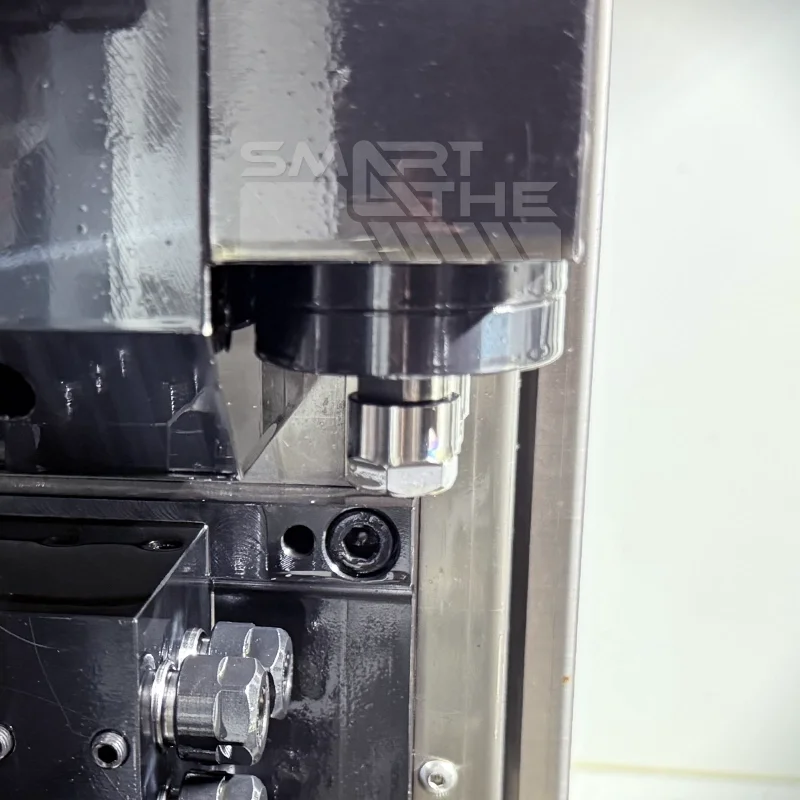

Y-axis Live Tools

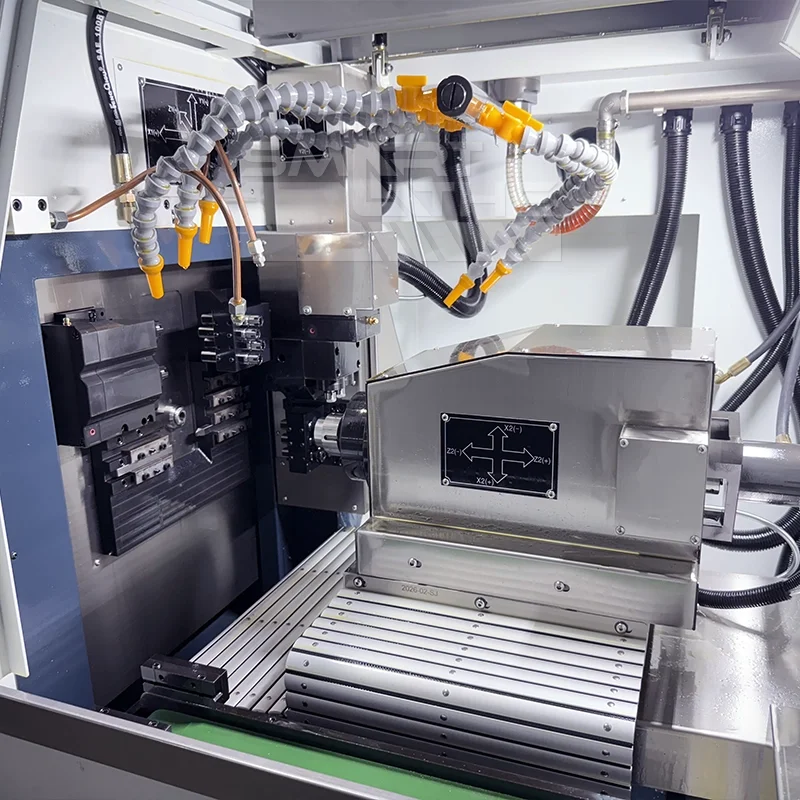

Sub Spindle

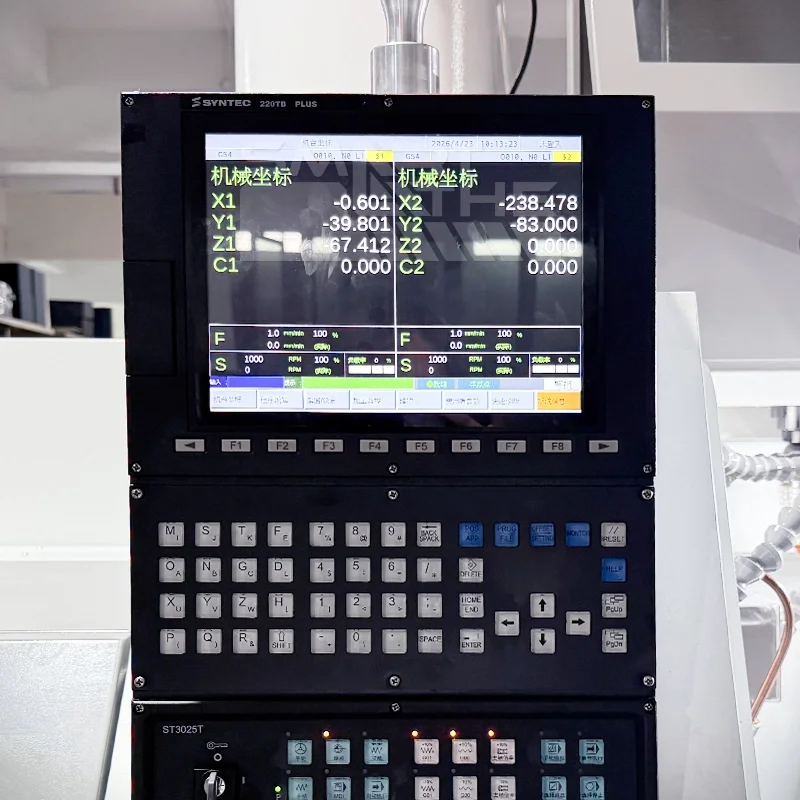

SYNTEC
CNC SYSTEM

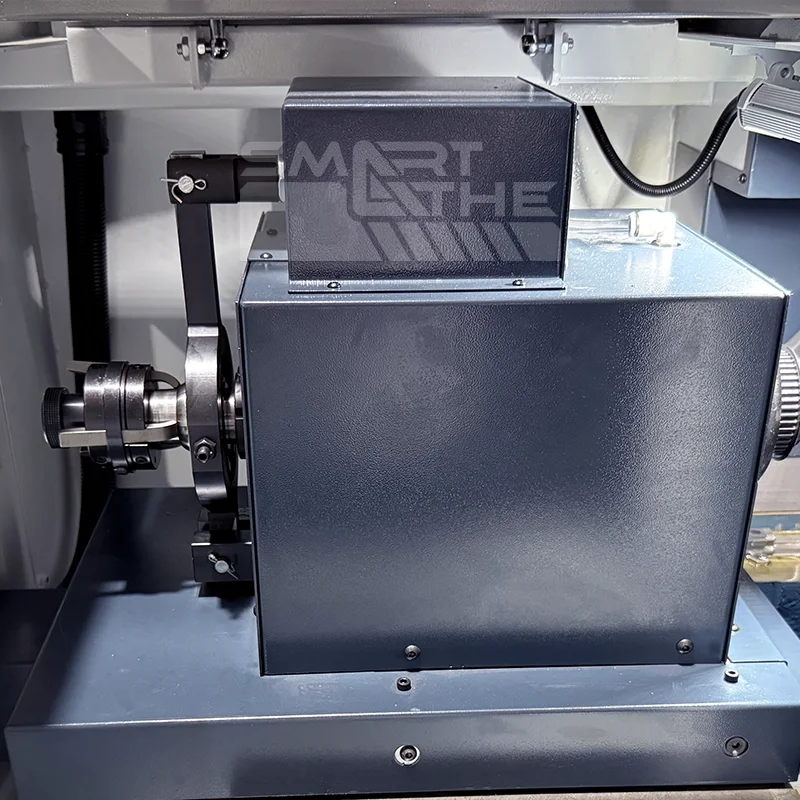

Electric Spindle
Toolbox
User Manual
High Pressure

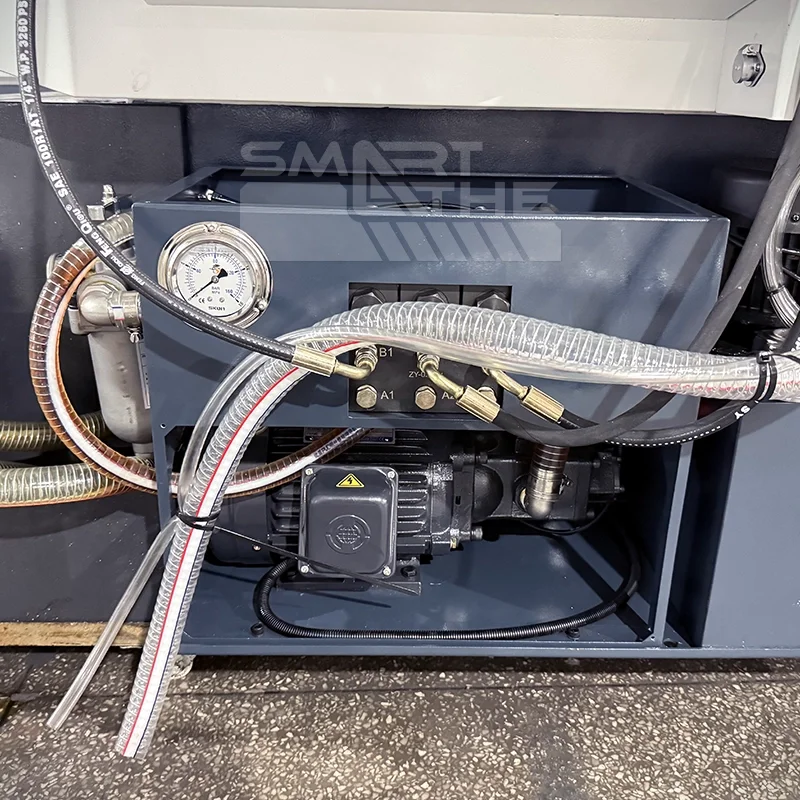

Oil Pump

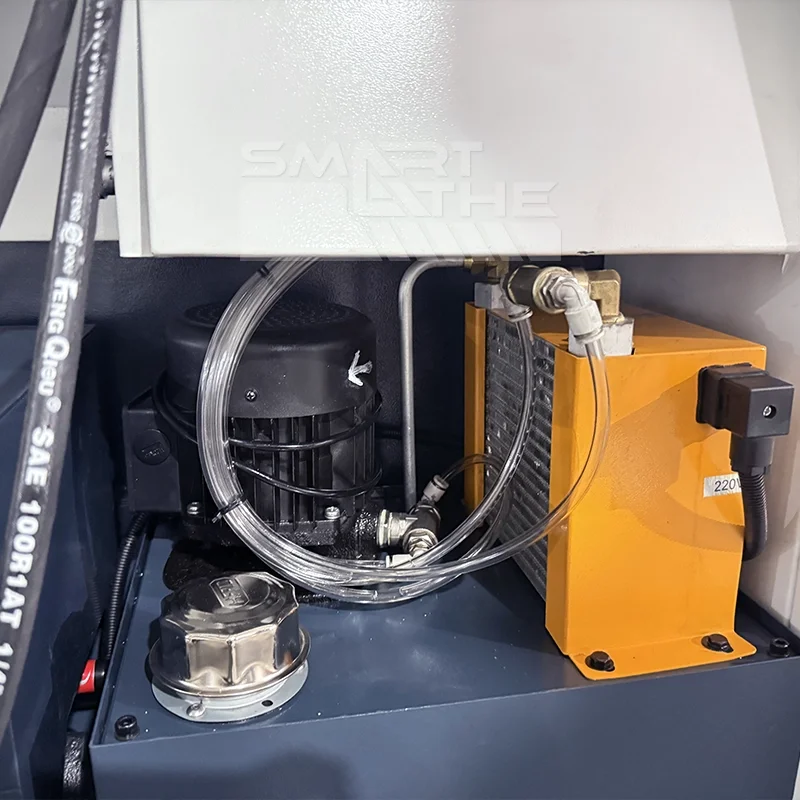

Spindle Oil
Cooling System

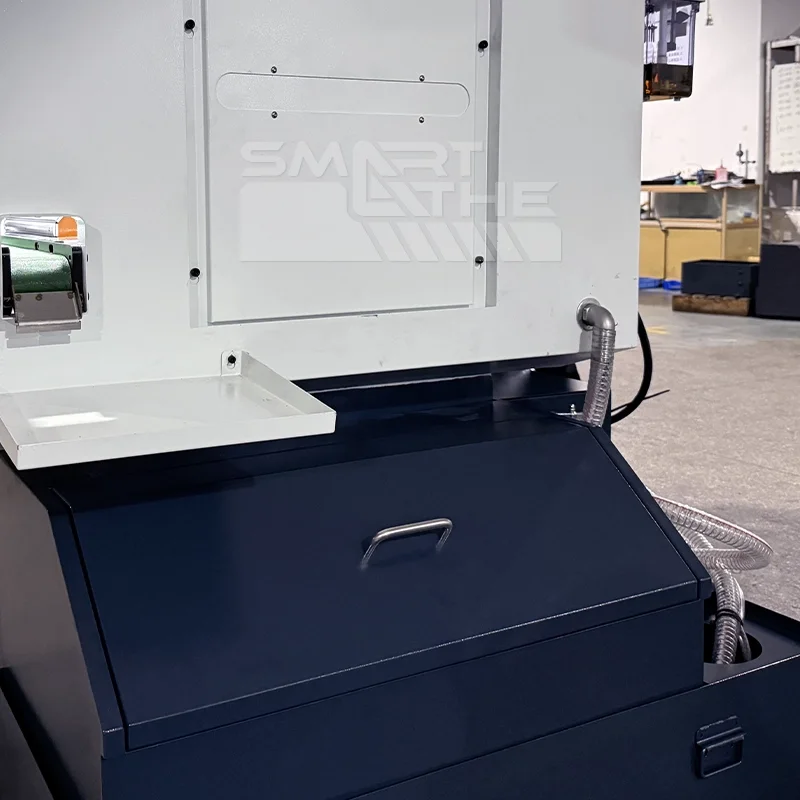

Coolant Tank

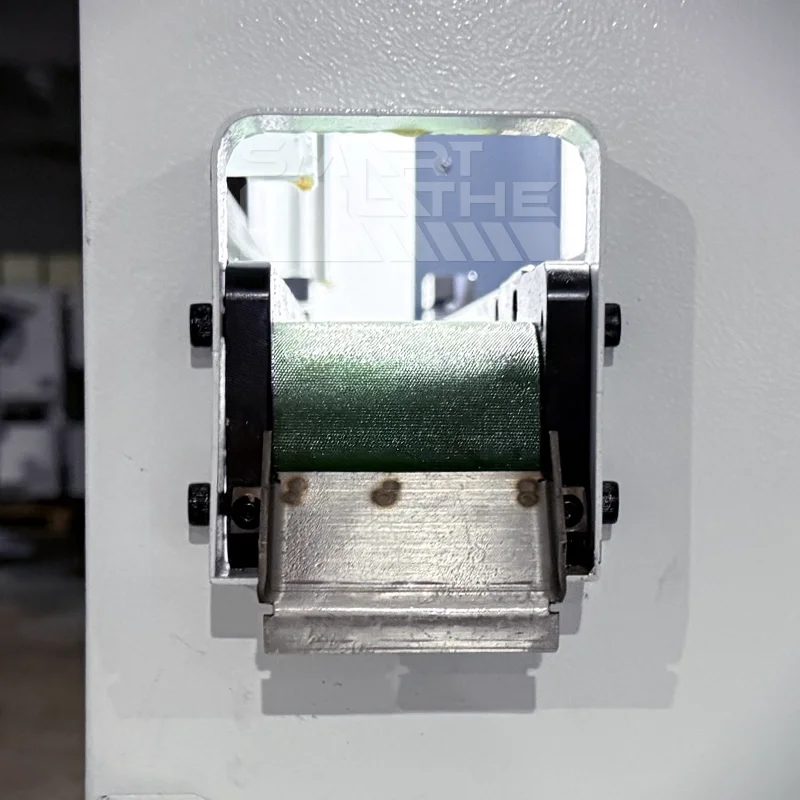

Part Conveyor

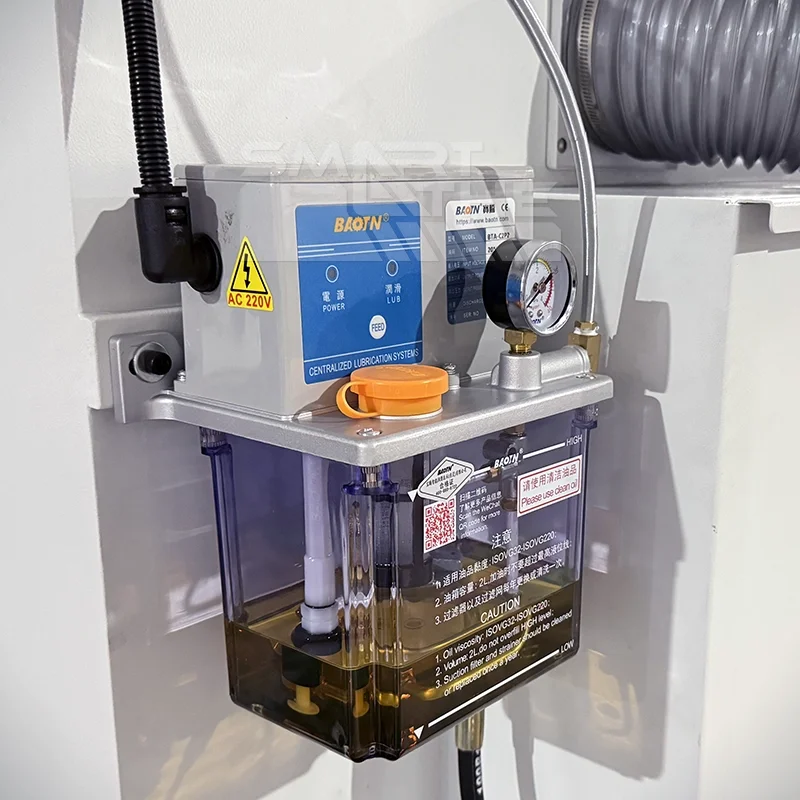

Lubrication System
Details
Technical Specifications |
SW-105 |
|---|---|
Max. Machining Length |
168mm(6.61") |
Turning Diameter |
Φ12mm(0.472") |
Max. Axial Drilling Diameter |
Φ8mm(0.315") |
Max. Axial Tapping Size |
M8 |
Max. Radial Drilling Diameter |
Φ8mm(0.315") |
Max. Radial Tapping Size |
M8 |
Spindle Speed(Main/Sub) |
6000RPM/6000RPM |
Live Tool Speed(Main/Sub) |
5000RPM |
Travel |
|
Z1/Z2 Axis |
180mm(7.09")/220mm(8.66") |
X1/X2 Axis |
100(3.94")/600mm(23.62") |
Y1/Y2 Axis |
175mm(6.89")/84mm(3.31") |
Rapid Speed (Z1/Z2/X1/X2/Y1/Y2) |
20m/min |
Machining Accuracy |
±0.006mm |
Surface Roughness |
≤Ra 1.6μm |
Tools |
|
Turning Tool |
Main Spindle: 6×□10mm |
Drilling Tool |
Main Spindle: 4×Φ16mm |
Live Tool |
Main Spindle: 4×ER11 |
Motor |
|
Spindle Drive Power |
Main: 2.5KW Sub: 1.5KW |
Live Tool Drive Power |
0.75KW/0.4KW |
CNC Control |
|
Controller |
SYNTEC |
Dimensions |
|
Footprint |
1800×1000×1570mm |
Weight |
1600kg |
Power Supply & Air Source |
|
Total Power |
10KW |
Voltage |
AC 380V 50Hz 3 Phase |
Air Pressure |
0.4-0.6Mpa |
Application
his type of lathe is particularly useful for producing long and slender parts, such as medical instruments, watch components, and aerospace parts, where high precision and accuracy are required. The machine's advanced technology and flexibility make it ideal for mass production, prototyping, and customized production.
Swiss lathes be used extensively to produce parts for the electronics and semiconductor industries, medical technology, aerospace, and high-end industrial markets applications. Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameters up to Φ12 mm
